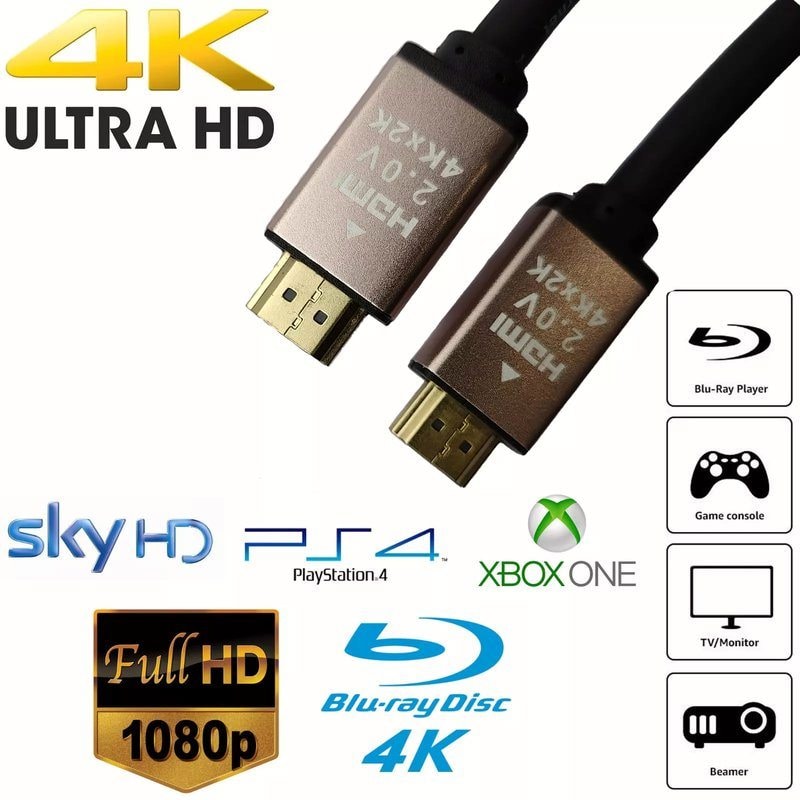

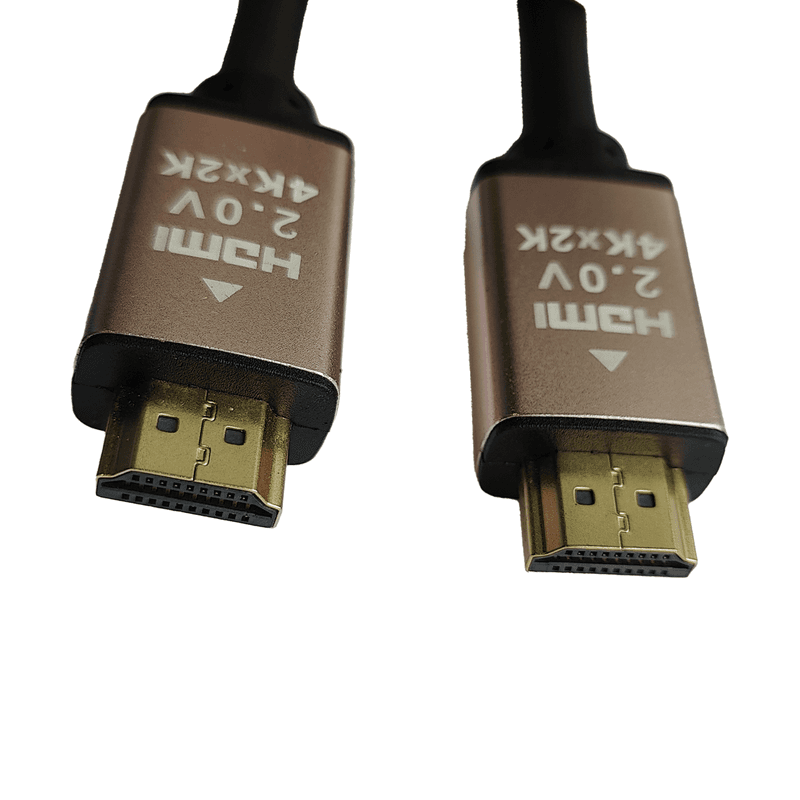

HDMI Cable 4K High Speed 10m 60Hz AOC Ethernet HDMI-A Male to Male Black
- Part no.
- HDMI-CABLE-4K-10M
Price
£19.42Available
Wire & Cable
Price
£19.42| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Product Type | 4K Active Optical HDMI AOC |
|---|---|
| Max Resolution | 4K (3840x2160) @60Hz 4:4:4 |
| Shielding | Double Aluminium Foil |
| Cable Length | 10 |
| Operating Temp | 0°C to 50°C |
| Product Type | 4K Active Optical HDMI AOC |
|---|---|
| HDMI Version | 2.0 High Speed |
| Bandwidth | 18 Gbps |
| Cable Construction | Hybrid OM3 Fibre + Copper |
| Shielding | Double Aluminium Foil |
| Fiber Type | OM3 Multimode (50/125μm) |
| Outer Diameter | 4.5 |
| Contacts | 24K Gold-plated |
| Max Resolution | 4K (3840x2160) @60Hz 4:4:4 |
|---|
| Connector Type A | HDMI Type A Male (19-pin) |
|---|---|
| Connector Type B | HDMI Type A Male (19-pin) |
| Cable Length | 10 |
|---|---|
| Jacket Material | PVC (Plenum-rated variants) |
| Operating Temp | 0°C to 50°C |
Features
The 10m 4K HDMI Active Optical Cable (AOC) extends NVR HDMI outputs to remote 4K monitors across large security control rooms or video walls, delivering lossless 3840x2160@60Hz 4:4:4 with 18Gbps bandwidth via OM3 multimode fiber cores and copper power pairs. Unlike passive copper limited to ~5m at 4K60, hybrid AOC construction eliminates signal degradation, supporting HDR10, 48-bit Deep Colour and 32-channel lossless audio (Dolby TrueHD/DTS-HD) from multi-camera mosaics without boosters or repeaters. German chipset ensures no snowflakes/blackouts; double aluminium shielding + Kevlar tensile members reject rack EMI from PSUs/Cat6 while surviving 10kg pulls through conduit.
Ultra-slim 4.5mm PVC jacket navigates tight rack trays alongside DC pigtails and Ethernet, with detachable pull-eye/grip connectors accelerating plenum installations per local codes. Unidirectional design suits source-to-display routing; ARC returns audio, CEC syncs power, Ethernet passes control—all HDCP 2.2 compliant for protected content. RoHS/UL VW-1 rated for safety; no external PSU simplifies rack builds versus TMDS extenders.
Deployed linking central 64-channel NVRs to perimeter operator stations or digital signage, it outperforms copper alternatives for permanent 10m+ spans in surveillance centres. Integrates with structured cabling, rack PDUs and power accessories for scalable 4K AV infrastructure without proprietary hardware.
