8MP
Price
£46.61| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Camera Type | Analog Camera |
|---|---|
| Resolution | 8MP (4K) |
| Lens Type | 2.8 mm, fixed lens |
| IR Distance | 60m |
| Protection | IP67 |
| Connection Type | Analogue |
| Dimensions | Ø 109.82 mm × 91.03 mm (Ø 4.32" × 3.6" ) |
| Model | DS-2CE78U1T-IT3F |
|---|---|
| Camera Type | Analog Camera |
| NVR Compatibility | Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any other NVR that supports ONVIF. |
| Resolution | 8MP (4K) |
|---|---|
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Max Resolution | 3840 (H) × 2160 (V) |
| Lens Type | 2.8 mm, fixed lens |
| Focal Length & FOV | Horizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm) |
| Lens Mount | M16 |
| Wide Dynamic Range (WDR) | Digital WDR |
| Noise Reduction | 2D DNR |
| Smart Hybrid Light | IR Only |
|---|---|
| IR Distance | 60m |
| Day/Night Mode | True Day Night |
| Day & Night | IR Cut Filter |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| Frame Rate | TVI: [email protected], 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: [email protected], 8MP@15fps AHD: [email protected], 8M@15fps CVBS: 960H P/N |
|---|---|
| Video Outputs | Switchable TVI/AHD/CVI/CVBS;1 HD analog output |
| Connection Type | Analogue |
|---|
| Housing Material | Main body: Metal, Enclosure: Plastic |
|---|---|
| Material | Main body: Metal, Enclosure: Plastic |
| Dimensions | Ø 109.82 mm × 91.03 mm (Ø 4.32" × 3.6" ) |
| Protection | IP67 |
| Brackets | DS-1280ZJ-TR13, DS-1280ZJ-S, DS-1281ZJ-S, DS-1272ZJ-110-TRS, DS-1275ZJ-SUS |
Features

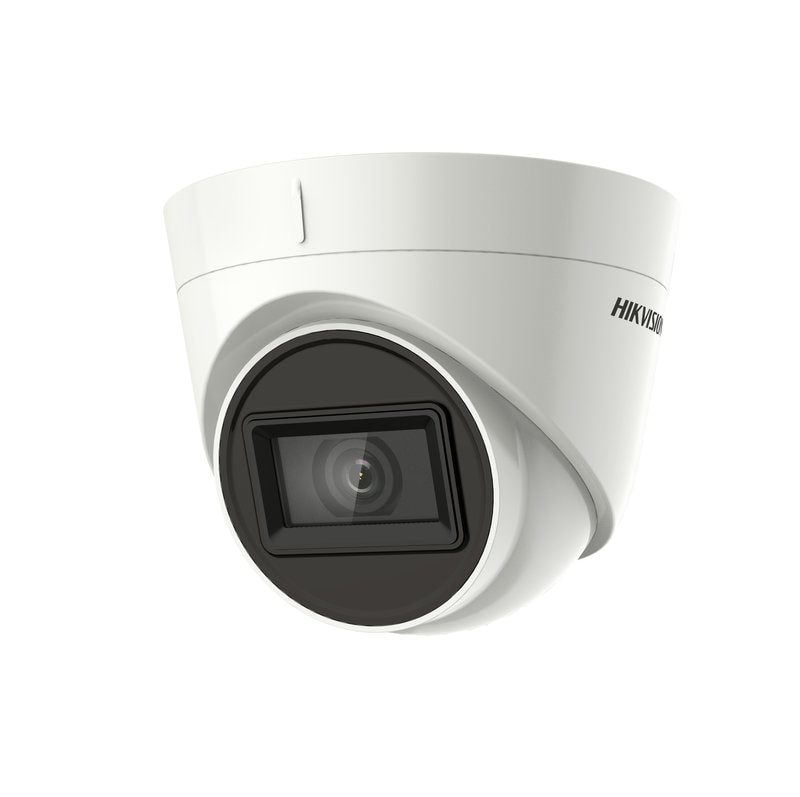

The Hikvision DS-2CE78U1T-IT3F is an 8MP 4K HD-TVI turret camera designed for high-resolution analogue CCTV systems using coaxial cable infrastructure. It delivers ultra-high-definition video at a maximum resolution of 3840 × 2160, providing detailed image capture suitable for applications requiring accurate identification such as building perimeters, entrances, car parks, warehouses, and commercial premises.
This model features Hikvision EXIR 2.0 infrared technology, providing night vision capability up to 60 metres. The EXIR system delivers uniform infrared illumination across the entire scene, improving image clarity and reducing overexposure compared to conventional infrared systems.
The turret housing allows flexible positioning during installation and supports mounting on ceilings or walls. Its fixed lens configuration ensures stable field of view coverage suitable for continuous monitoring applications.
The camera supports multiple analogue video signal formats including HD-TVI, AHD, CVI, and CVBS, allowing compatibility with a wide range of DVR systems and simplifying upgrades from lower-resolution analogue installations without replacing existing coaxial cabling.
The IP67-rated enclosure provides protection against dust and water ingress, ensuring reliable performance in indoor and outdoor environments.
From this part’s own catalogue data.
| Works with | Wired (coax) recorder |
|---|---|
| NVR Compatibility | Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any other NVR that supports ONVIF. |
| Brackets | DS-1280ZJ-TR13, DS-1280ZJ-S, DS-1281ZJ-S, DS-1272ZJ-110-TRS, DS-1275ZJ-SUS |
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Change of mind | 14 days |
Buy: basket, then card payment via the secure checkout. Bulk or larger quantities: Sales.
