Hikvision · 5MP
Price
£33.18| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Max Resolution | 2560 (H) × 1944 (V) |
|---|---|
| Lens Type | 2.8 mm, fixed lens |
| IR Range | Up to 20 m |
| Protection | IP67 |
| Power Supply | 12 VDC ± 25% |
| Dimensions | Φ 109.8 mm × 89.75 mm (Φ 4.32" × 3.53") |
| Brand | Hikvision |
|---|---|
| White Balance | Auto/Manual |
| Image Sensor | 5 MP CMOS image sensor |
|---|---|
| Max Resolution | 2560 (H) × 1944 (V) |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens Type | 2.8 mm, fixed lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.8°, diagonal FOV: 110.7° |
| Lens Mount | M12 |
| Image Settings | Brightness, Sharpness, DNR , Mirror, Smart IR |
| Day & Night | ICR |
|---|---|
| Light Alarm | Yes |
| Day/Night Mode | Auto/Colour/BW (Black and White) |
| White Light | AUTO/OFF |
| IR Range | Up to 20 m |
| Frame Rate | TVI: 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080P@25fps, 1080P@30fps |
|---|---|
| Video Outputs | 1 HD analog output |
| Power Supply | 12 VDC ± 25% |
|---|
| Material | Enclosure: Plastic Main body: Metal |
|---|---|
| Dimensions | Φ 109.8 mm × 89.75 mm (Φ 4.32" × 3.53") |
| Protection | IP67 |
| Brackets | DS-1281ZJ-S, DS-1280ZJ-TR13, DS-1280ZJ-S, DS-1272ZJ-110-TRS, DS-1276ZJ-SUS, DS-1275ZJ-SUS |
Features

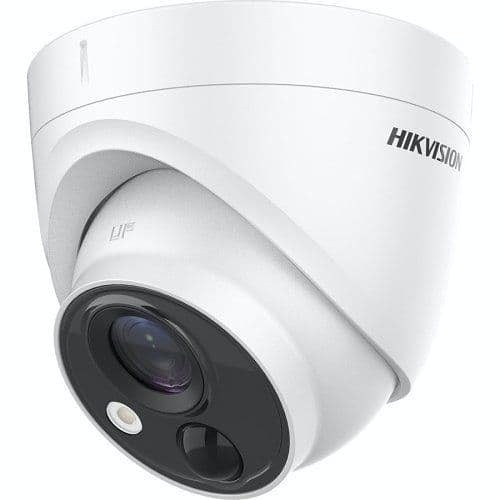

The Hikvision DS-2CE71H0T-PIRLO is a 5MP HD-TVI turret camera designed for indoor surveillance applications requiring reliable motion-triggered recording and high-resolution video capture. It delivers a maximum resolution of 2560 × 1944, providing improved image clarity compared to standard 1080p analogue cameras when used with compatible Hikvision DVR systems.
This model incorporates an integrated PIR (Passive Infrared) sensor, which detects motion based on heat signatures rather than image analysis. This improves detection accuracy and helps reduce false alarms caused by environmental factors such as lighting changes, shadows, or moving objects. The PIR sensor can be used to trigger recording events when connected to compatible Hikvision DVR systems.
The camera features a fixed 2.8mm lens, offering a wide field of view suitable for indoor areas such as offices, retail shops, entrances, corridors, and residential spaces.
Integrated infrared illumination provides night vision capability up to 20 metres, allowing the camera to operate in complete darkness. True Day/Night functionality ensures automatic switching between daytime colour imaging and infrared night mode using an IR cut filter.
The camera supports multiple video output formats including HD-TVI, AHD, CVI, and CVBS, ensuring compatibility with a wide range of analogue DVR systems and simplifying system upgrades using existing coaxial cabling infrastructure.
From this part’s own catalogue data.
| Brackets | DS-1281ZJ-S, DS-1280ZJ-TR13, DS-1280ZJ-S, DS-1272ZJ-110-TRS, DS-1276ZJ-SUS, DS-1275ZJ-SUS |
|---|
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Change of mind | 14 days |
Buy: basket, then card payment via the secure checkout. Bulk or larger quantities: Sales.
Hikvision 5 MP PIR Fixed Turret Camera: not yet reviewed. Reviews come from customers who bought this item, invited once the order is dispatched; each rating is a verified purchase.
