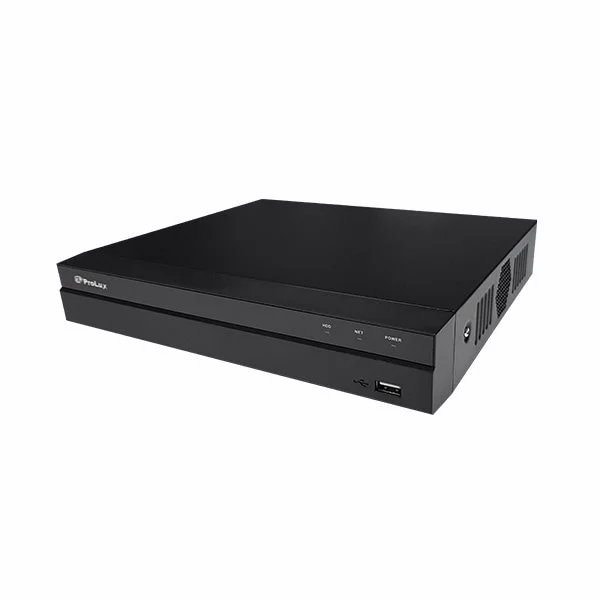

Name: PROLUX PXN-2108HS-8P-4K ,NVR 8 Channel 1U 8PoE 4K&H.265 Lite Network Video Recorder, Up to 2ch@4...
Brand: PROLUX
SKU: PXN-2108HS-8P-4K
Price: 118.55 GBP
Availability: InStock

Key specifications
Max Resolution	8 MP
Channels	8
Storage Capacity	Up to 10 TB
Works with	Network (IP) cameras
Cameras	Up to 8
Picture quality	Up to 4K (8MP)
Storage	Up to 10TB, no drive
Powers cameras	Yes, 8 PoE ports

Full specification

Specifications

Brand	PROLUX
Channels	8
Colour	Black
Max Resolution	8 MP
Storage Capacity	Up to 10 TB
Video Compression	H.265/H.264
Video Outputs	HDMI, VGA

Description

Features

H.265/H.264 codec decoding
Max 80Mbps incoming bandwidth
Up to 8Mp resolution preview & playback
Up to 1ch@8MP/4ch@1080P decoding
HDMI/VGA simultaneous video output
Support IPC UPnP, 8PoE ports

About Prolux - 8 Channel Network Video Recorder (NVR)

System

Main Processor: Dual-core embedded processor
Operating System: Embedded LINUX

Video and Audio

IP Camera Input: 8 Channel
Two-way Talk: 1 Channel Input, 1 Channel Output, RCA

Display

Interface: 1 HDMI, 1 VGA
Resolution: HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity: 1ch@8MP 30fps, 4ch@1080P 30fps
Multi-screen Display: 1/4/8/9
OSD: Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression: H.265/H.264
Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.
Record Rate: 80Mbps
Bit Rate: 16Kbps ~ 20Mbps Per Channel
Record Mode: Manual, Schedule(Regular(Continuous), MD, Stop
Record Interval: 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger Events: Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), and Tampering
Alarm input: N/A
Relay Output: N/A

Playback and Backup

Sync Playback: 1/4
Search Mode: Time /Date, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network

Third-party Support

Third-party Support: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Network

Interface: 1 RJ-45 port (10/100Mbps)
PoE: 8 ports (IEEE802.3at/af)
Network Function: HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip
Optical Fiber Interface: N/A
Max. User Access: 128 users
Smart Phone: iPhone, iPad, Android
Interoperability: ONVIF 2.4, SDK, CGI

Storage

Internal HDD: 1 SATA III Port, up to 6TB capacity for each HDD
HDD Mode: Single
eSATA: N/A
Backup Mode: USB Device/Network

Storage

Internal HDD: 1 SATA Port, up to 10TB capacity
eSATA: N/A

Auxiliary Interface

USB: 2 ports (1 Rear USB2.0, 1 Front USB2.0)
RS232: N/A
RS485: N/A

Electrical

Power Supply: Single, DC48V/1.25A
Power Consumption: NVR: <5.3W (without HDD) PoE: Max 25.5w for single port, 80w in total

Environmental

Operating Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions(W×D×H): Compact 1U, 260mm×224.9mm×47.6mm (10.2″ x 8.9″ x 1.9″)
Net Weight: 0.8kg (1.76 lb) (without HDD)
Gross Weight: 1.6kg(3.53 lb)(without HDD)

Certifications

CE: EN55032, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014
UL: UL60950-1

Compatibility

From this part’s own catalogue data.

Works with	Network (IP) cameras
