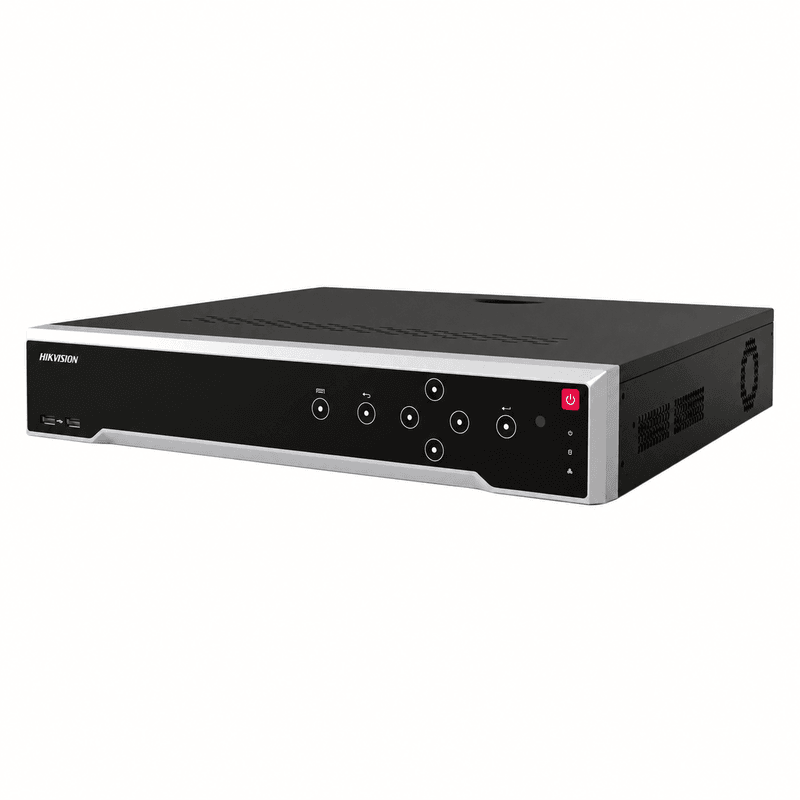

Hikvision 32-ch 1.5U 24 PoE 8K NVR
- Part no.
- DS-7732NI-M4/24P
- EAN / barcode
- 6931847196912
Price
£869.46Available
Hikvision · 32CH
Price
£869.46| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Form Factor | 1.5U Rack |
|---|---|
| Max Resolution | 32 MP |
| Channels | 32-CH |
| HDD Bays | 4 Bays |
| Max Total Storage | 64 TB |
| PoE Budget (Total) | ≤ 210 W |
| Power Supply | 100-240V AC |
| Max Power Consumption | ≤ 15 W (without HDD and PoE) |
| Model | DS-7732NI-M4/24P |
|---|---|
| Series | M-Series |
| Form Factor | 1.5U Rack |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI/VGA Independent | Independent |
| NAS / iSCSI Support | Yes |
| AcuSense | No |
| DeepinMind / AI | No |
| Face Recognition | Yes |
| Line Crossing | Yes |
| People Counting | Yes |
| App Compatibility | Hik-Connect (iOS, Android, Windows) |
| Camera Compatibility | Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any ONVIF-conformant IP camera. |
| Manufacturer | Hikvision |
| Max Resolution | 32 MP |
|---|---|
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Max Output Resolution | 8K (7680 × 4320) |
| Channels | 32-CH |
|---|---|
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Frame Rate | 30fps |
| Decoding Capability | 2×32MP / 10×8MP / 20×4MP / 40×1080p |
| HDMI Output | 2× HDMI |
| VGA Output | Yes |
| Human & Vehicle Detection | Yes |
| Face Detection | Yes |
| Intrusion Detection | Yes |
| False Alarm Filtering | Yes |
| Audio Input | 1-ch RCA |
| Audio Output | 1-ch RCA |
| Two-Way Audio | Yes |
| Alarm Input | 16-ch |
| Alarm Output | 9-ch |
| IP Video Input | 32-ch Up to 32 MP resolution |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| HDD Bays | 4 Bays |
|---|---|
| Max HDD per Bay | 16TB |
| Max Total Storage | 64 TB |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| eSATA Port | Yes |
|---|---|
| RS-485 | Yes |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Built-in PoE Ports | 24 PoE |
|---|---|
| PoE Budget (Total) | ≤ 210 W |
| Power Supply | 100-240V AC |
| Max Power Consumption | ≤ 15 W (without HDD and PoE) |
| Perimeter Protection | Yes |
|---|---|
| Dimension (W × D × H) | 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
Features
The Hikvision DS-7732NI-M4/24P is a professional-grade 32-channel network video recorder designed for enterprise and large-scale IP surveillance systems requiring ultra-high resolution recording, high bandwidth throughput, and integrated PoE connectivity. It features twenty-four built-in PoE ports, enabling direct connection and power supply to IP cameras without external PoE switches, simplifying deployment and infrastructure requirements.
This NVR supports IP camera resolutions up to 32MP, delivering extremely detailed video capture suitable for critical security environments. With incoming bandwidth up to 320 Mbps and outgoing bandwidth up to 400 Mbps, the system ensures stable recording and playback performance even with high-resolution cameras.
The recorder supports advanced H.265+ compression, significantly reducing storage requirements while maintaining video quality. It includes dual HDMI outputs, with one supporting up to 8K resolution and independent output capability for flexible monitoring configurations. VGA and CVBS outputs provide additional display compatibility.
Storage capacity is highly scalable, with four SATA interfaces supporting up to 16TB per drive and additional expansion through eSATA, NAS, and iSCSI network storage. Dual RS-485 interfaces allow PTZ camera control, and multiple USB ports support backup and peripheral devices.
This NVR is designed for commercial, industrial, and enterprise surveillance installations requiring high channel capacity, large storage scalability, and reliable network video recording performance.
