4CH

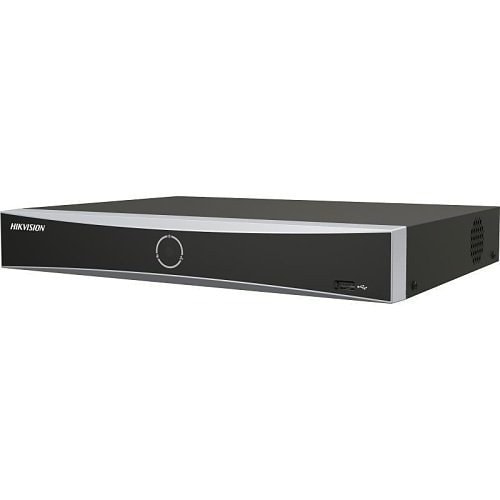

Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR
- Part no.
- DS-7604NXI-K1/4P
- EAN / barcode
- 6931847175139
Price
£166.36Available
4CH
Price
£166.36| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Max Resolution | 12MP |
|---|---|
| Channels | 4-CH |
| Max Total Storage | 10 TB |
| PoE Budget (Total) | ≤ 50 W |
| Power Supply | 48 VDC, 1.35 A |
| Max Power Consumption | ≤ 50 W |
| Dimension (W × D × H) | 320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9") |
| Model | DS-7604NXI-K1/4P |
|---|---|
| Series | K-Series |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI/VGA Independent | Independent |
| AcuSense | Yes |
| DeepinMind / AI | No |
| Face Recognition | Yes |
| Line Crossing | Yes |
| People Counting | No |
| Camera Compatibility | Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any ONVIF-conformant IP camera. |
| AI by Device | Facial recognition, perimeter protection, motion detection 2.0 |
| AI by Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
| Face Picture Comparison | 4-ch |
| Face Picture Library | Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) |
| Max Resolution | 12MP |
|---|---|
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Channels | 4-CH |
|---|---|
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Frame Rate | 30fps |
| Decoding Capability | 1×12MP / 2×8MP / 4×4MP / 8×1080p |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Human & Vehicle Detection | Yes |
| Face Detection | Yes |
| Intrusion Detection | Yes |
| False Alarm Filtering | Yes |
| Audio Input | 1 RCA |
| Audio Output | 1 RCA |
| Two-Way Audio | Yes |
| Alarm Input | Optional |
| Alarm Output | Optional |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Decoding Format | H.265/H.265+/H.264+/H.264 |
| Motion Detection By Device | All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
| Max Total Storage | 10 TB |
|---|---|
| Capacity | Up to 16 TB capacity for each HDD |
| eSATA Port | No |
|---|---|
| USB Ports | 2× USB 2.0 |
| RS-485 | No |
| Built-in PoE Ports | 4 PoE |
|---|---|
| PoE Budget (Total) | ≤ 50 W |
| Power Supply | 48 VDC, 1.35 A |
| Max Power Consumption | ≤ 50 W |
| Perimeter Protection | Yes |
|---|---|
| Dimension (W × D × H) | 320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9") |
Features
The Hikvision DS-7604NXI-K1/4P is a compact 4-channel PoE AcuSense network video recorder designed for small to medium IP CCTV installations requiring intelligent analytics and simplified deployment. With four integrated PoE ports, the NVR allows direct connection and power delivery to compatible IP cameras, reducing installation time and cabling complexity.
This model supports IP camera resolutions up to 12MP and provides advanced AcuSense analytics, including human and vehicle detection to significantly reduce false alarms triggered by non-relevant motion such as animals, shadows, or weather conditions. Facial recognition and smart search functions further enhance investigative efficiency during playback.
The NVR supports H.265+ video compression, enabling efficient use of storage and bandwidth without compromising image quality. Video output is available via HDMI with up to 4K resolution and VGA up to Full HD, with the option to configure outputs as simultaneous or independent.
Storage is handled through a single SATA interface supporting hard drives up to 10TB. Network connectivity includes a dedicated LAN port alongside the PoE interfaces, with remote access available through Hik-Connect and ONVIF-compatible platforms. This NVR is well suited for residential, retail, and small commercial security systems where intelligent detection and ease of installation are key requirements.
From this part’s own catalogue data.
