| Works with | Wired (coax) cameras |
|---|---|
| Cameras | Up to 4 |
| Picture quality | Up to 5MP |
£91.52Available
Hikvision · 4CH
HIKVISION 4-ch 8MP 1U H.265 eSSD AcuSense DVR
- Part no.
- IDS-E04HUHI-B
- EAN / barcode
- 6942160415260
Price
£158.51Available
Hikvision · 4CH
Price
£158.51| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Recording Resolution | 8MP, 5MP, 4MP, 3MP, 1080p, 720p |
|---|---|
| Channels | 4-CH |
| Max Total Storage | Built-in 1 TB eSSD |
| Power Supply | 12V DC |
| Max Power Consumption | ≤ 7.5 W |
| Dimension (W × D × H) | 151 × 121× 46 mm (5.94 × 4.76 × 1.81 inch) |
| Model | iDS-E04HUHI-B |
|---|---|
| Series | AcuSense |
| Incoming Bandwidth | 8 Mbps |
| Outgoing Bandwidth | 96 Mbps |
| HDMI/VGA Independent | Sync |
| NAS / iSCSI Support | Yes |
| AcuSense | Yes |
| DeepinMind / AI | No |
| Face Recognition | No |
| Line Crossing | Yes |
| People Counting | No |
| App Compatibility | Hik-Connect (iOS, Android, Windows) |
| Camera Compatibility | Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any ONVIF-conformant IP camera. |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; |
| Total Bandwidth | 96 Mbps Incoming bandwidth: 8 Mbps |
| Manufacturer | Hikvision |
| Recording Resolution | 8MP, 5MP, 4MP, 3MP, 1080p, 720p |
|---|---|
| Max Output Resolution | 1920 × 1080 |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/CIF |
| Channels | 4-CH |
|---|---|
| Video Compression | H.265 |
| Frame Rate | 8 fps @ 8MP / 12 fps @ 5MP / 15 fps @ 4MP |
| Decoding Capability | 4 Channels |
| HDMI Output | 1× HDMI |
| VGA Output | Yes |
| Human & Vehicle Detection | Yes |
| Face Detection | No |
| Intrusion Detection | Yes |
| False Alarm Filtering | Yes |
| Audio Input | 4-ch via coaxial cable |
| Audio Output | 1-ch via HDMI |
| Alarm Input | Optional (4) |
| Alarm Output | Optional (1) |
| IP Video Input | 2-ch Up to 8 MP resolution Support H.265 IP cameras |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 8 MP@15 fps, 8 [email protected] fps, 3K@20 fps, 5 MP@20 fps, 5 [email protected] fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60 |
| CVBS Input | Support |
| Video Output Mode | HDMI/VGA simultaneous output |
| Alarm In/Out | OPTIONAL 4/1 |
| Max Total Storage | Built-in 1 TB eSSD |
|---|---|
| Capacity | Built-in 1024 GB eSSD (960 GB available) Note: The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only |
| eSATA Port | No |
|---|---|
| USB Ports | 2× USB 2.0 |
| RS-485 | No |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Power Supply | 12V DC |
|---|---|
| Max Power Consumption | ≤ 7.5 W |
| Perimeter Protection | Yes |
|---|---|
| Dimension (W × D × H) | 151 × 121× 46 mm (5.94 × 4.76 × 1.81 inch) |
Features

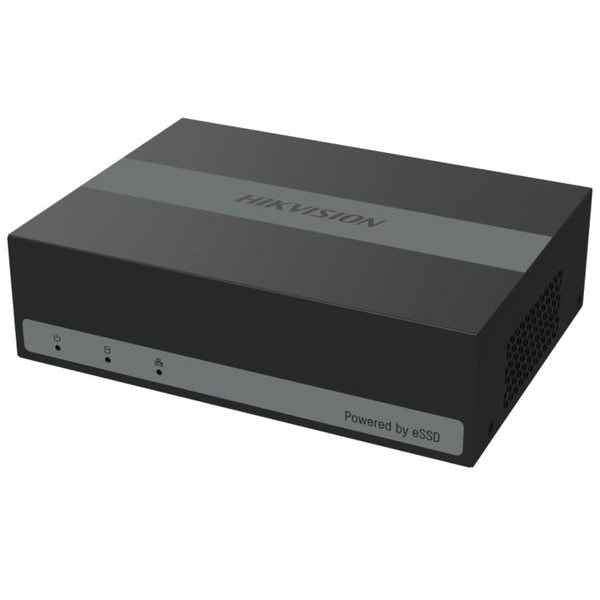

The Hikvision iDS-E04HUHI-B is a compact AcuSense intelligent video recorder designed for small-scale surveillance systems requiring integrated storage, deep learning analytics, and efficient recording performance. The system features built-in eSSD storage, providing faster access speed, improved reliability, and reduced power consumption compared to traditional hard disk drives.
The recorder supports video recording up to 8MP resolution, ensuring detailed image capture suitable for residential, retail, and small commercial surveillance installations. Deep learning Motion Detection 2.0 enables accurate classification of human and vehicle targets, reducing false alarms caused by environmental movement. Perimeter protection features further enhance system security by providing accurate event detection.
The device supports HDMI and VGA output with Full HD resolution for local monitoring. Scene-adaptive bitrate control dynamically adjusts video bitrate based on scene conditions, optimizing storage efficiency while maintaining video quality.
With integrated storage, compact form factor, and low power consumption, the iDS-E04HUHI-B is ideal for installations requiring reliable recording performance, minimal maintenance, and efficient intelligent surveillance capabilities.
From this part’s own catalogue data.
| Works with | Wired (coax) cameras |
|---|---|
| App Compatibility | Hik-Connect (iOS, Android, Windows) |
| Camera Compatibility | Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any ONVIF-conformant IP camera. |
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Change of mind | 14 days |
