Hikvision · 4CH

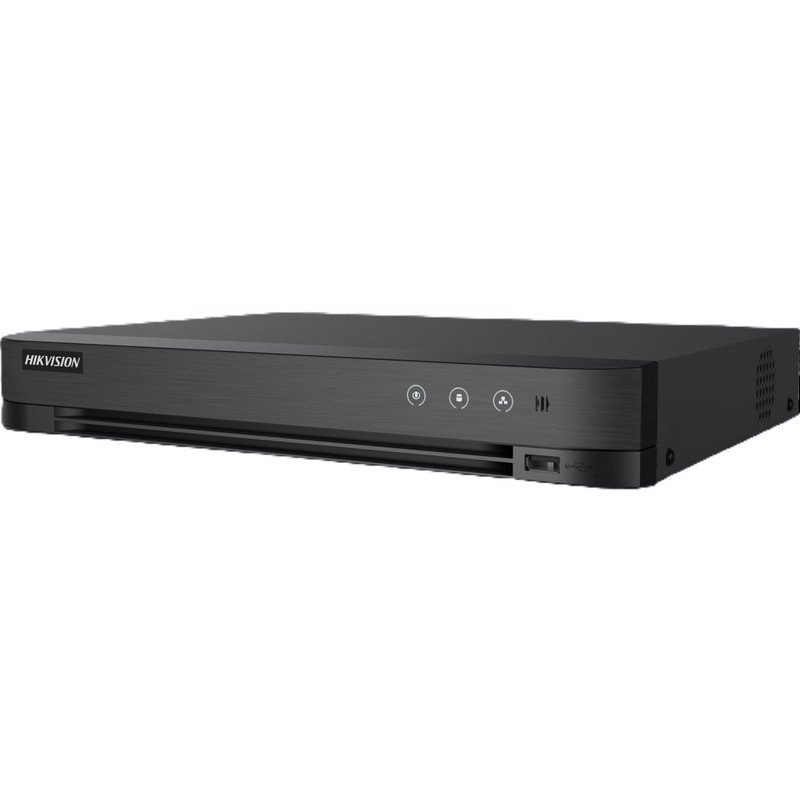

Hikvision 4-ch 1080p 1U H.265 DVR
- Part no.
- DS-7204HGHI-M1
- EAN / barcode
- 6931847170950
Price
£46.49Available
Hikvision · 4CH
Price
£46.49| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Max Resolution | 1080p Lite @ 30fps |
|---|---|
| Channels | 4-CH |
| Storage | Single HDD (up to 4TB) |
| Max Total Storage | 6TB |
| Max Power Consumption | ≤ 16 W |
| Brand | Hikvision |
|---|---|
| Model | DS-7204HGHI-M1 |
| Series | M-Series |
| HDMI/VGA Independent | Sync |
| AcuSense | No |
| DeepinMind / AI | No |
| Face Recognition | No |
| Line Crossing | No |
| People Counting | No |
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
| Features | Deep Learning Motion Detection 2.0 |
| Max Resolution | 1080p Lite @ 30fps |
|---|---|
| Max Analog Resolution | 1080p |
| Recording Resolution | 1080p Lite, 720p, WD1, VGA, CIF |
| Max Output Resolution | 1920 × 1080 |
| Channels | 4-CH |
|---|---|
| IP Channels (Hybrid) | Up to 5 |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Frame Rate | 30fps |
| Decoding Capability | 4 Channels |
| BNC Output | No |
| Human & Vehicle Detection | Yes |
| Face Detection | No |
| Intrusion Detection | No |
| False Alarm Filtering | Yes |
| Audio Input | 1 RCA + 4 via coax |
| Audio Output | 1 RCA |
| Two-Way Audio | Yes |
| Video Inputs | 4-ch Analog + up to 5-ch IP |
| Main Output | HDMI/VGA 1080p@60Hz |
| Max HDD per Bay | 6TB |
|---|---|
| Max Total Storage | 6TB |
| Storage | Single HDD (up to 4TB) |
| eSATA Port | No |
|---|---|
| USB Ports | 2× USB 2.0 |
| RS-485 | No |
| Network | 10/100 Mbps |
| Max Power Consumption | ≤ 16 W |
|---|
| Perimeter Protection | No |
|---|
Features
The Hikvision DS-7204HGHI-M1 is a 4-channel Turbo HD digital video recorder designed for professional CCTV installations using coaxial and hybrid video infrastructure. It supports HDTVI, AHD, CVI, CVBS, and IP camera inputs, allowing flexible integration with both legacy analog systems and modern hybrid surveillance deployments. The recorder can support up to 4 analog channels and expand to 5 IP channels with a maximum resolution of 1080p.
Datasheet-of-DS-7204HGHI-M1_202…
The system utilizes H.265 Pro+ compression technology to significantly reduce bandwidth and storage consumption while maintaining reliable video recording quality. Motion Detection 2.0 with deep learning enables classification of human and vehicle targets, helping reduce false alarms caused by environmental movement such as rain, shadows, or foliage.
Datasheet-of-DS-7204HGHI-M1_202…
Video output is available via HDMI and VGA interfaces, supporting simultaneous display for monitoring stations. The recorder includes audio input and output through RCA connectors and supports audio transmission via coaxial cable. Remote monitoring and management are enabled through Hik-Connect and standard network protocols using the built-in 10/100 Mbps Ethernet interface.
Datasheet-of-DS-7204HGHI-M1_202…
The unit supports a single SATA hard drive up to 4TB capacity and provides stable, efficient recording for residential, commercial, and small business CCTV systems. Its compact 1U form factor makes it suitable for desk mounting, cabinet installation, or integration into structured security infrastructure.
From this part’s own catalogue data.
| Works with | Wired (coax) cameras |
|---|---|
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Change of mind | 14 days |
Buy: basket, then card payment via the secure checkout. Bulk or larger quantities: Sales.
Hikvision 4-ch 1080p 1U H.265 DVR: not yet reviewed. Reviews come from customers who bought this item, invited once the order is dispatched; each rating is a verified purchase.
