Hikvision · 4CH
Price
£113.10Basket or quote request; either way the part is sourced for you
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Recording Resolution | 8MP Lite, 5MP, 4MP, 3K, 1080p, 720p |
|---|---|
| Channels | 4-CH |
| Max Total Storage | 10 TB |
| Power | PoC (Power over Coax) |
| Max Power Consumption | ≤ 40 W |
| Model | DS-7204HUHI-K1/P |
|---|---|
| Series | K-Series |
| HDMI/VGA Independent | Sync |
| AcuSense | No |
| DeepinMind / AI | No |
| Face Recognition | No |
| Line Crossing | Yes |
| People Counting | No |
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
| Brand | Hikvision |
| Recording Resolution | 8MP Lite, 5MP, 4MP, 3K, 1080p, 720p |
|---|---|
| Channel 1 Resolution | 8MP @ 8fps |
| Channels | 4-CH |
|---|---|
| IP Channels (Hybrid) | Up to 8 |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Frame Rate | 8 fps @ 8MP / 12 fps @ 5MP / 15 fps @ 4MP |
| Decoding Capability | 4 Channels |
| BNC Output | Yes |
| Human & Vehicle Detection | No |
| Face Detection | No |
| Intrusion Detection | Yes |
| False Alarm Filtering | No |
| Audio Input | 4 RCA, Audio via Coaxial |
| Audio Output | 1 RCA |
| Two-Way Audio | Yes |
| Alarm Input | 4 |
| Alarm Output | 1 |
| Video Inputs | 4-ch Analog + up to 8-ch IP |
| Main Output | HDMI/VGA 2K (2560×1440@60Hz) |
| Other Channels Max | 5MP @ 12fps |
| Max Total Storage | 10 TB |
|---|---|
| Storage Support | Single HDD (up to 10TB) |
| eSATA Port | No |
|---|---|
| RS-485 | Yes |
| Network | 10/100 Mbps |
| Max Power Consumption | ≤ 40 W |
|---|---|
| Power | PoC (Power over Coax) |
| Perimeter Protection | Yes |
|---|
Features

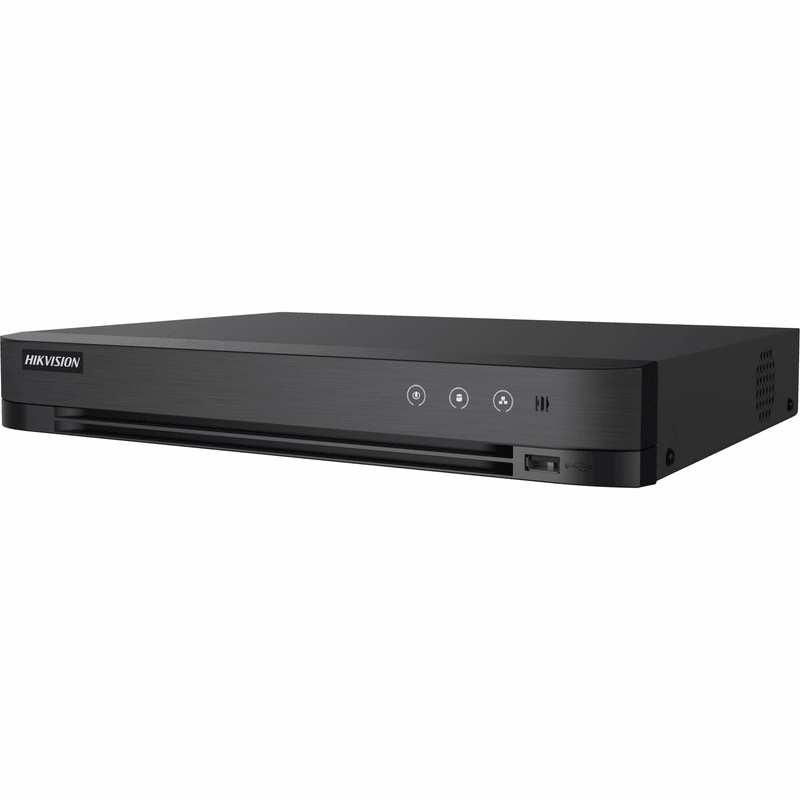

The Hikvision DS-7204HUHI-K1/P is a professional 4-channel Turbo HD DVR designed for hybrid CCTV systems requiring high-resolution recording and simplified installation through Power over Coax (PoC) technology. It supports multiple video input formats including HDTVI, AHD, CVI, CVBS, and IP cameras, allowing seamless integration with existing coaxial infrastructure and modern IP surveillance devices. The recorder supports up to 4 analog camera channels and can expand to support up to 8 IP cameras with resolutions up to 8MP.
Datasheet-of-DS-7200HUHI-K1_V4.…
This DVR uses H.265 Pro+ compression technology to improve encoding efficiency and significantly reduce storage requirements while maintaining recording quality. It supports recording resolutions up to 8MP, with 5MP recording at 12fps and intelligent video content analytics such as line crossing detection and intrusion detection for enhanced perimeter protection.
Datasheet-of-DS-7200HUHI-K1_V4.…
Power over Coax (PoC) functionality enables compatible cameras to receive both power and video transmission through a single coaxial cable, reducing installation complexity and eliminating the need for additional power cabling. The system provides HDMI and VGA video outputs for flexible monitoring and supports remote viewing via Hik-Connect using its built-in Ethernet network interface.
The recorder supports one SATA hard drive with capacity up to 10TB and includes alarm input/output interfaces for integration with external alarm devices. It is suitable for residential, commercial, and professional CCTV installations requiring high-resolution recording, PoC capability, and hybrid camera compatibility.
From this part’s own catalogue data.
| Works with | Wired (coax) cameras |
|---|---|
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
