Hikvision · 8CH
Price
£396.38Basket or quote request; either way the part is sourced for you
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Form Factor | 1U Rackmount / Desktop |
|---|---|
| Max Resolution | 32MP |
| IP Video Input | 8-ch Up to 32 MP resolution |
| HDD Bays | 2 Bays |
| Max Total Storage | 32TB |
| PoE Budget (Total) | ≤ 120 W |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Model | DS-7608NI-M2/8P |
|---|---|
| Series | M-Series |
| Form Factor | 1U Rackmount / Desktop |
| Incoming Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI/VGA Independent | Independent |
| NAS / iSCSI Support | Yes |
| AcuSense | No |
| DeepinMind / AI | No |
| Face Recognition | Yes |
| Line Crossing | Yes |
| People Counting | Yes |
| Camera Compatibility | Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any ONVIF-conformant IP camera. |
| Manufacturer | Hikvision |
| Max Resolution | 32MP |
|---|---|
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Video Compression | H.265+, H.265, H.264+, H.264 |
|---|---|
| Frame Rate | 30fps |
| Decoding Capability | 2×32MP / 10×8MP / 20×4MP / 40×1080p |
| HDMI Output | 1× HDMI |
| VGA Output | Yes |
| Human & Vehicle Detection | Yes |
| Face Detection | Yes |
| Intrusion Detection | Yes |
| False Alarm Filtering | Yes |
| Audio Input | 1 RCA |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | Yes |
| Alarm Input | 4 |
| Alarm Output | 1 |
| IP Video Input | 8-ch Up to 32 MP resolution |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Dual-Stream Recording | Support |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Stream Type | Video, Video & Audio |
| Alarm In/Out | 4/1 |
| HDD Bays | 2 Bays |
|---|---|
| Max HDD per Bay | 16TB |
| Max Total Storage | 32TB |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| eSATA Port | No |
|---|---|
| USB Ports | 2× USB 2.0 |
| RS-485 | No |
| Remote Connection | 128 |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| PoE Budget (Total) | ≤ 120 W |
|---|---|
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Max Power Consumption | ≤ 120 W |
| Power | ≤ 120 W |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Perimeter Protection | Yes |
|---|---|
| Dimension (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
Features

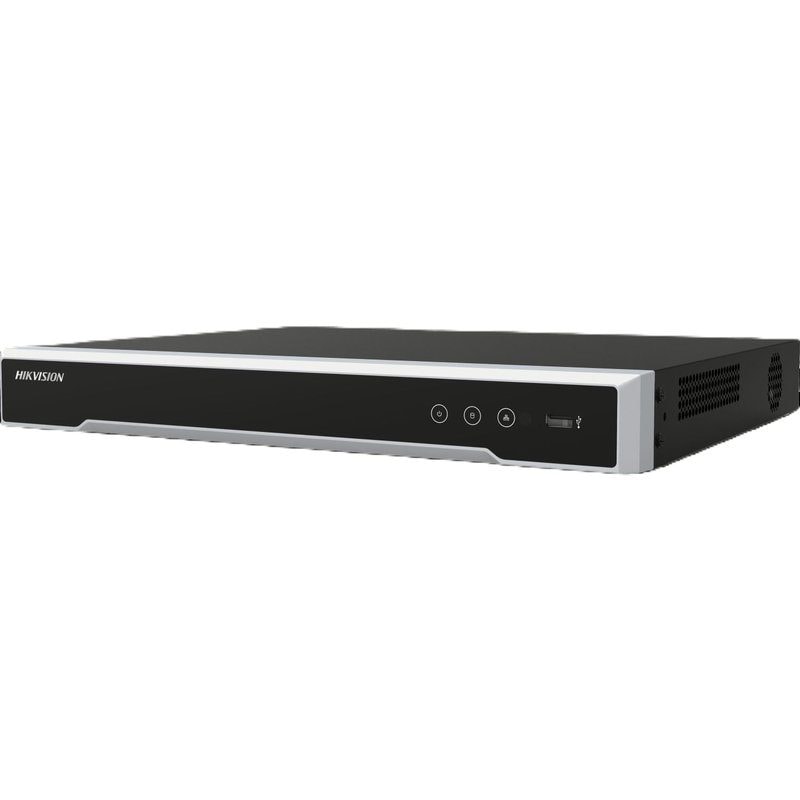

The Hikvision DS-7608NI-M2/8P is an advanced 8-channel network video recorder designed for professional IP surveillance systems requiring ultra-high resolution recording, integrated PoE connectivity, and scalable storage. With eight built-in PoE ports, it enables direct connection and power supply to IP cameras, simplifying installation and reducing infrastructure requirements.
This NVR supports IP cameras with resolutions up to 32MP, allowing detailed image capture for critical surveillance applications. It utilizes H.265+ compression technology to reduce bandwidth consumption and storage requirements while maintaining high video quality. Independent HDMI and VGA outputs support flexible monitoring configurations, with HDMI capable of delivering up to 8K resolution.
The system provides incoming bandwidth of up to 128 Mbps and outgoing bandwidth up to 256 Mbps, ensuring smooth recording and playback across multiple high-resolution cameras. Storage capacity is expandable via two SATA interfaces supporting up to 16TB per drive, with additional support for NAS and iSCSI network storage for scalable data management.
Built for commercial and enterprise surveillance environments, the recorder includes Gigabit LAN connectivity, USB interfaces for backup, alarm integration, and compatibility with Hik-Connect and ONVIF devices for remote monitoring and management.
From this part’s own catalogue data.
| Works with | Network (IP) cameras |
|---|---|
| Camera Compatibility | Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any ONVIF-conformant IP camera. |
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Change of mind | 14 days |
Buy: basket, then card payment via the secure checkout. Bulk or larger quantities: Sales.
Hikvision 8-ch 1U 8 PoE 8K NVR: not yet reviewed. Reviews come from customers who bought this item, invited once the order is dispatched; each rating is a verified purchase.
