£204.43Available
Intrusion

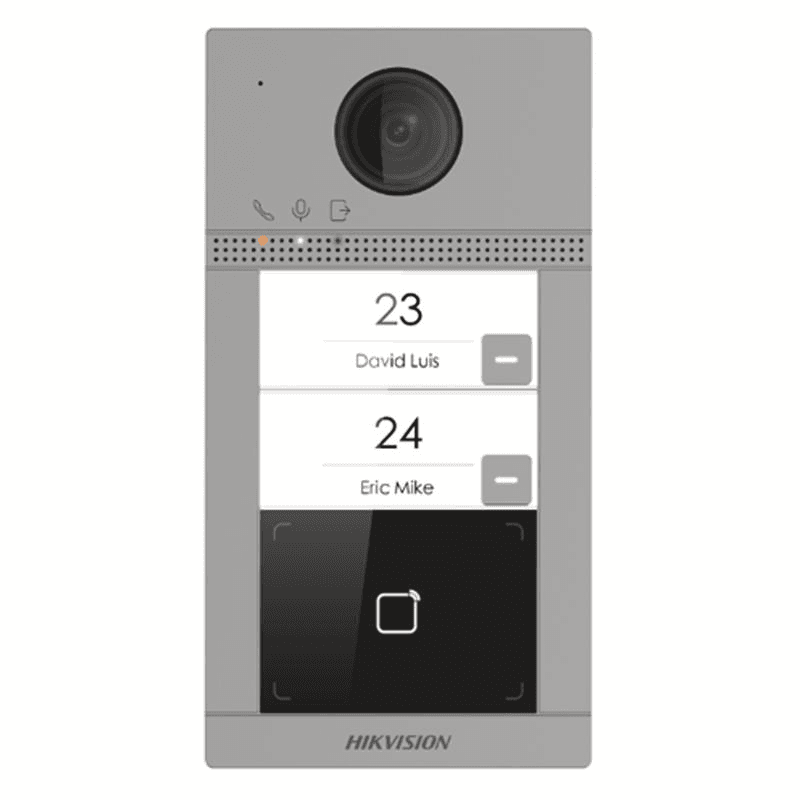

Hikvision Metal Vandal-resistant Facial Recognition IP Villa Door Station
- Part no.
- DS-KV9503-WBE1
- EAN / barcode
- 6931847186012
1/131/131/13Intrusion
1/13Price
£211.79| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Max Resolution | 800 × 480 |
|---|---|
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Power Supply | 12 VDC, 1.5 A,IEEE802.3af, Standard PoE |
| Max Power Consumption | ≤6W |
| Dimensions | 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01") |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operation Method | Capacitive touch screen |
|---|---|
| Luminance | 425 cd/m² |
| Volume Adjustment | Adjustable |
| Bluetooth | Support:2.0 |
| Card Reading Frequency | 13.56 MHz |
| Face Recognition Distance | 0.3 to 2 m |
| Face Recognition Accuracy Rate | ≥ 99% |
| TF Card | Reserved |
| Button | 1 physical button |
| Installation | Surface mounting |
| Application Environment | Outdoor |
| Language | namese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbia |
| Max Resolution | 800 × 480 |
|---|---|
| Wide Dynamic Range (WDR) | Support 120 dB |
| Supplement Light | IR light, up to 3 m |
|---|
| Audio Input | 1 built-in omnidirectional microphone |
|---|---|
| Audio Compression | G.711u,G.711a,Opus,AAC-LD,AAC-LC,G.726,G.722.1 |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression Bitrate | G.711u,G.711a,Opus:64kbps;G.722.1,G.726:32kbps;AAC-LD,AAC-LC:16kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Alarm Input | 4 (2 exit butttons and 2 door contacts by default) |
| User Capacity | 20000 |
|---|---|
| Face Capacity | 10000 |
| Card Capacity | 100000 |
| Linked Indoor Station Capacity | 500 |
| Network Protocol | TCP/IP, RTSP |
|---|---|
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Power Supply | 12 VDC, 1.5 A,IEEE802.3af, Standard PoE |
|---|---|
| Max Power Consumption | ≤6W |
| Operating System | Linux |
|---|---|
| Screen Size | 4.3-inch |
| Protection Rating | IP65, IK08 |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 10% to 90% (no-condensing) |
| Dimensions | 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01") |
Features
The Hikvision DS-KV9503-WBE1 is a facial recognition IP villa door station designed for secure access control and visitor communication in residential and small commercial environments. The device integrates advanced authentication technologies with video intercom functionality, allowing controlled entry management from a single unit.
The door station is equipped with dual 2 MP cameras supported by infrared illumination to enable reliable facial recognition and visitor identification in both day and low-light conditions. The integrated 4.3-inch colour LCD display with a resolution of 800 × 480 provides a visual interface for user interaction and access control feedback.
Multiple authentication methods are supported, including facial recognition, PIN code entry, RFID card access, QR code scanning, and Bluetooth authentication. This flexibility allows property owners or administrators to configure secure entry based on user preference or system design.
The unit includes a physical one-touch call button for visitor communication and supports direct calls to the Hik-Connect mobile application, allowing residents to answer calls and manage door access remotely without the need for an indoor station.
Constructed with a metal vandal-resistant housing, the DS-KV9503-WBE1 provides IK08 impact protection and IP65-rated weather resistance, making it suitable for outdoor installation at villa entrances, gates, or building access points.
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Change of mind | 14 days |
Buy: basket, then card payment via the secure checkout. Bulk or larger quantities: Sales.
Hikvision Metal Vandal-resistant Facial Recognition IP Villa Door Station: not yet reviewed. Reviews come from customers who bought this item, invited once the order is dispatched; each rating is a verified purchase.
