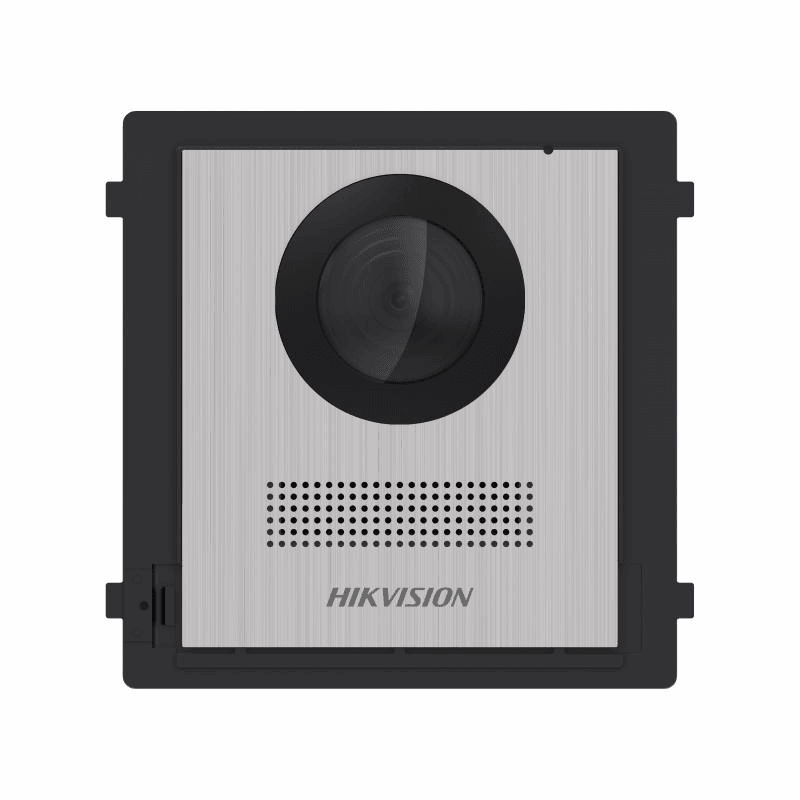

Hikvision Modular IP Video Intercom Door Station 2MP Fisheye PoE IP65
- Part no.
- DS-KD8003-IME1(B)-NS
- EAN / barcode
- 6931847183554
Price
£129.72Available
Intrusion
Price
£129.72| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Max Resolution | 2 MP |
|---|---|
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Power Supply | 12 VDC, 500 mA, IEEE 802.3af, PoE |
| Max Power Consumption | ≤ 5W |
| Dimensions | 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65") |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Volume Adjustment | Adjustable |
|---|---|
| Exit Button | 2 (2 for lock control) |
| Lock Control | 2 relays, Max. 30 VDC, 2 A |
| Installation | Surface mounting, flush mounting |
| Application Environment | Outdoor |
| Language | Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, |
| Max Resolution | 2 MP |
|---|---|
| Wide Dynamic Range (WDR) | Support |
| Supplement Light | Low illumination, IR supplement lights |
|---|
| Video Compression | H.264; h.265; MJPEG |
|---|---|
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Compression | G.711 U,G.711 A,Opus ,AAC-LD,AAC-LC,G.726 ,G.722.1 |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Alarm Input | 4 (2 exit buttons and 2 door contacts by default) |
| User Capacity | 2000 |
|---|---|
| Card Capacity | 6000 |
| Linked Indoor Station Capacity | 500 |
| Network Protocol | TCP/IP, RTSP, ipv6, onvif |
|---|---|
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Power Supply | 12 VDC, 500 mA, IEEE 802.3af, PoE |
|---|---|
| Max Power Consumption | ≤ 5W |
| Operating System | Linux |
|---|---|
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 10% to 95% (no-condensing) |
| Dimensions | 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65") |
Features
The Hikvision modular IP video intercom door station main unit is designed for professional access control and building entry management systems. As the central component of Hikvision modular intercom solutions, the unit supports integration with additional modules such as call buttons, card readers, or keypad access units.
The door station is equipped with a 2 megapixel fisheye camera that provides wide-area coverage of the entrance point. Integrated infrared illumination ensures clear video capture in low-light conditions, allowing the system to maintain visual identification capability during night-time operation.
Power over Ethernet (PoE) support simplifies installation by allowing both power and network communication to be delivered through a single Ethernet cable. This reduces wiring complexity and makes the unit suitable for modern IP-based access control systems.
The device includes dual electronic lock control outputs, enabling installers to manage two separate door locks from the same intercom station. In addition, the unit provides a direct 12 V DC 500 mA output to power an electronic lock without requiring a separate external power supply.
Designed for external installation, the stainless steel housing offers mechanical durability while the IP65 protection rating provides resistance against dust and water ingress. The device can be configured and managed remotely through a web interface, allowing system administrators to perform setup and maintenance without direct physical access.
