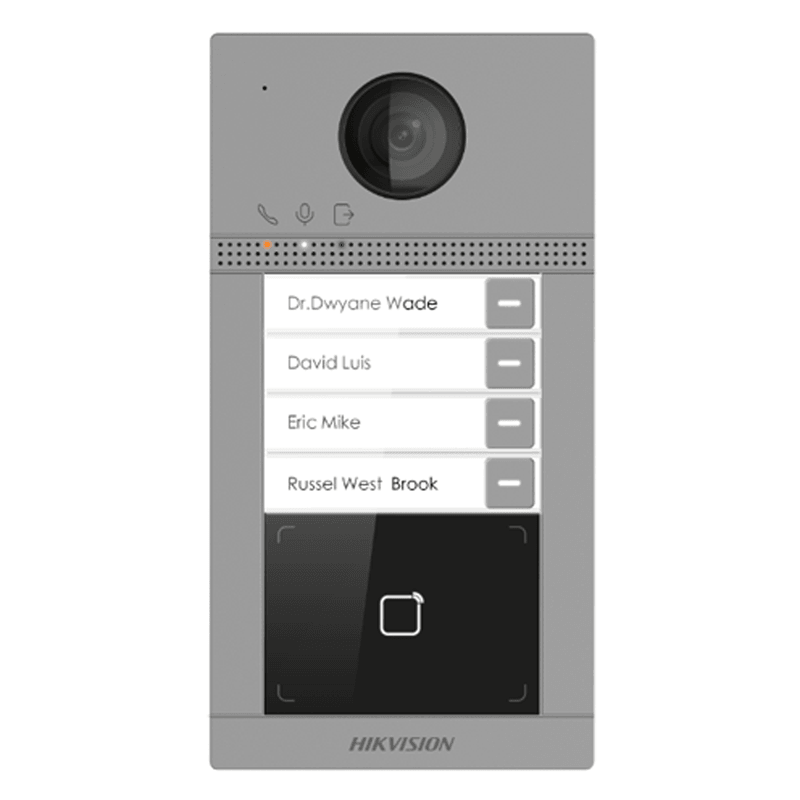

Hikvision DS-KV8413-WME1 4 Button IP Video Intercom Door Station
- Part no.
- DS-KV8413-WME1
- EAN / barcode
- 6931847179427
Price
£213.11Available
Intrusion
Price
£213.11| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Network Interface | 1 RJ-45,10/100 Mbps self-adaptive |
|---|---|
| Max Power Consumption | ＜ 10 W |
| Dimensions | 174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1") |
| Operating Temperature | -40 °C to 53 °C(-40 °F to 127.4 °F) |
| Volume Adjustment | Adjustable |
|---|---|
| Received Frequency | 2.4 to 2.4835 GHz |
| Transmitted Frequency | 2.4 to 2.4835 GHz |
| Bandwidth | 20/40 MHz |
| Card Reading Frequency | 13.56 MHz |
| TF Card | Reserved |
| Lock Control | 2 relays, Max. 30 VDC 2 A |
| Button | 2 physical buttons |
| Installation | Surface mounting |
| Application Environment | Outdoor |
| Language | Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, |
| Wide Dynamic Range (WDR) | Digital WDR/76.9 dB |
|---|
| Supplement Light | IR light, up to 3 m |
|---|
| Video Compression | H.264; h.265; MJPEG |
|---|---|
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Compression | G.711 U,G.711 A,Opus ,AAC-LD,AAC-LC,G.726 ,G.722.1 |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| User Capacity | 2000 |
|---|---|
| Card Capacity | 10000 |
| Linked Indoor Station Capacity | 2 (main indoor station) |
| Network Protocol | TCP/IP, RTSP, ipv6, onvif |
|---|---|
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Network Interface | 1 RJ-45,10/100 Mbps self-adaptive |
| Max Power Consumption | ＜ 10 W |
|---|
| Operating System | Linux |
|---|---|
| Protection Rating | IP65, IK08 |
| Operating Temperature | -40 °C to 53 °C(-40 °F to 127.4 °F) |
| Operating Humidity | 10% to 95% (no-condensing) |
| Dimensions | 174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1") |
Features
The Hikvision DS-KV8413-WME1 is a multi-button IP video intercom door station designed for villas, apartments and small multi-user residential properties. The unit features four call buttons allowing communication with up to four indoor stations, making it suitable for small shared entrances or multi-tenant homes.
The door station includes a built-in 2MP HD camera with infrared illumination, allowing clear visitor identification both during the day and in low-light conditions. Advanced audio processing with noise suppression and echo cancellation ensures clear two-way communication between visitors and indoor monitors.
The integrated Mifare card reader allows secure access control by enabling authorised users to unlock the door using compatible access cards. The device can manage access for up to four indoor station users.
Built-in WiFi connectivity allows convenient system setup and configuration without requiring complex wiring, while web configuration provides flexible system management.
The housing is constructed from aluminium alloy with an industrial design that offers both durability and a professional appearance. With IP65 weather protection and IK08 impact resistance, the unit is suitable for outdoor installation.
The DS-KV8413-WME1 supports both Power over Ethernet (PoE) and 12V DC power supply options, providing flexible installation for residential and small commercial access control systems.
