| Works with | Wired (coax) cameras |
|---|---|
| Cameras | Up to 8 |
| Picture quality | Up to 4K (8MP) |
£195.73Available
8CH

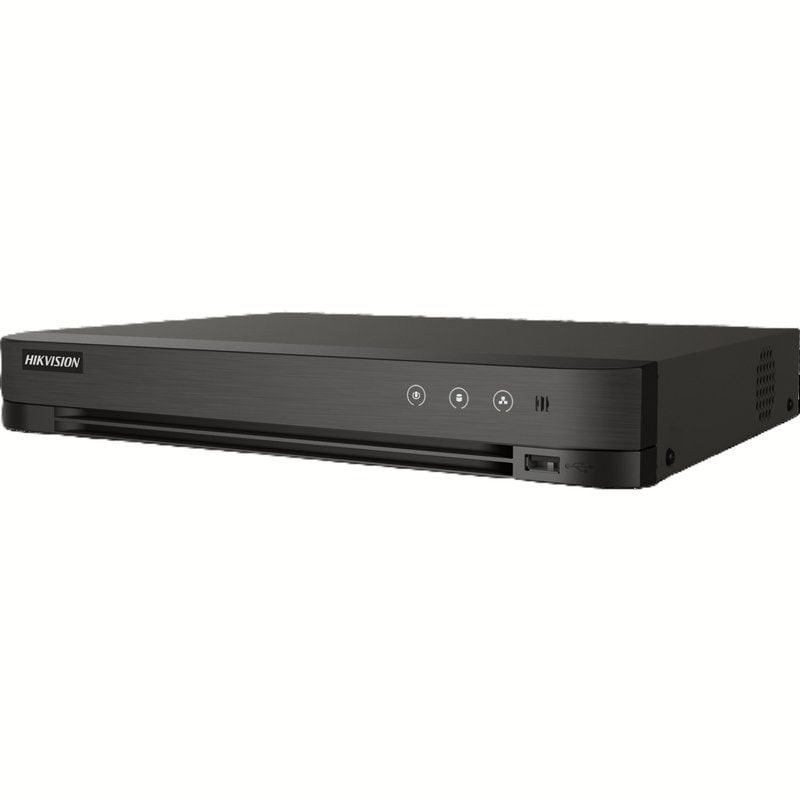

Hikvision 8-ch 5MP 1U H.265 AcuSense DVR
- Part no.
- IDS-7208HQHI-M1/XT
- EAN / barcode
- 6942160473802
Price
£132.82Available
8CH
Price
£132.82| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Max Resolution | 5MP Lite |
|---|---|
| Max Total Storage | 10TB |
| Power Supply | 12V DC |
| Max Power Consumption | ≤ 18 W |
| Dimension (W × D × H) | 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch) |
| Model | iDS-7208HQHI-M1/XT |
|---|---|
| Series | M-Series |
| AcuSense | Yes |
| DeepinMind / AI | No |
| Face Recognition | Yes |
| Line Crossing | Yes |
| People Counting | No |
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
| Face Picture Library | Up to 16 face picture libraries |
| Face Picture Comparison (Captured from Camera) | Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera) |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; |
| Max Resolution | 5MP Lite |
|---|---|
| Max Analog Resolution | 5MP |
| Recording Resolution | 5MP Lite, 3K Lite, 4MP Lite, 1080p Lite, 720p |
| IP Channels (Hybrid) | Up to 12 |
|---|---|
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Frame Rate | 12 fps @ 5MP Lite / 15 fps @ 4MP Lite |
| Decoding Capability | 8 Channels |
| BNC Output | Yes |
| Human & Vehicle Detection | Yes |
| Face Detection | Yes |
| Intrusion Detection | Yes |
| False Alarm Filtering | Yes |
| Audio Input | 1 RCA + 8 via coax |
| Audio Output | 1 RCA |
| Two-Way Audio | Yes |
| Alarm Input | Optional |
| Alarm Output | Optional |
| Max Total Storage | 10TB |
|---|
| USB Ports | 2× USB 2.0 |
|---|---|
| RS-485 | Yes |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Power Supply | 12V DC |
|---|---|
| Max Power Consumption | ≤ 18 W |
| Colour | Black |
|---|---|
| Perimeter Protection | Yes |
| Dimension (W × D × H) | 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch) |
Features
The Hikvision iDS-7208HQHI-M1/XT is an 8-channel AcuSense hybrid DVR designed for intelligent surveillance applications requiring deep learning analytics and flexible camera integration. The recorder supports multiple video formats including HDTVI, AHD, CVI, CVBS, and IP cameras, allowing seamless integration with both analog and IP surveillance systems.
The system supports recording resolution up to 5MP Lite and 3K Lite at up to 12 frames per second, ensuring detailed video capture while maintaining efficient storage usage. H.265 Pro+ compression technology significantly reduces storage requirements and bandwidth consumption without compromising recording quality.
AcuSense deep learning technology enables accurate human and vehicle classification, dramatically reducing false alarms caused by environmental motion. The system also supports facial recognition on up to two channels and perimeter protection features including line crossing detection and intrusion detection on up to four channels.
Hybrid functionality allows connection of up to 12 IP cameras, providing scalability and future system expansion capability. HDMI and VGA outputs support Full HD display for local monitoring. Storage is supported via one SATA interface with up to 10TB capacity, and network connectivity supports remote access via Hik-Connect and ONVIF-compatible systems.
This DVR is suitable for retail, office, commercial, and residential surveillance installations requiring intelligent detection and reliable recording performance.
From this part’s own catalogue data.
