£425.99Available
Hikvision · 32CH

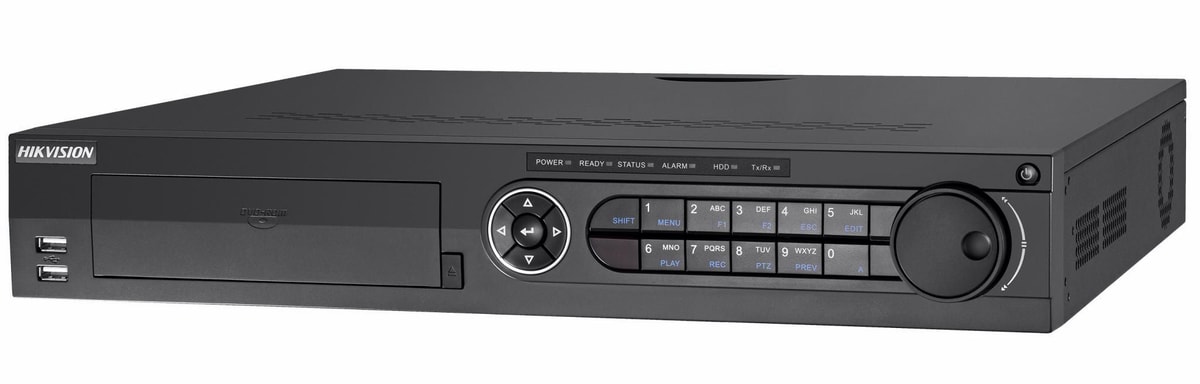

Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
- Part no.
- iDS-7332HUHI-M4/S
- EAN / barcode
- 6931847184377
Price
£905.59Available
Hikvision · 32CH
Price
£905.59| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Form Factor | 1.5U Rack |
|---|---|
| Max Resolution | 8MP (4K) |
| Channels | 32-CH |
| HDD Bays | 4 Bays |
| Max Total Storage | 48TB |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Max Power Consumption | ≤ 55 W |
| Dimension (W × D × H) | 440 × 399 × 72 mm (17.3 × 15.7 × 2.8 inch) |
| Model | iDS-7332HUHI-M4/S |
|---|---|
| Series | M-Series |
| Form Factor | 1.5U Rack |
| HDMI/VGA Independent | Independent |
| AcuSense | Yes |
| DeepinMind / AI | No |
| Face Recognition | No |
| Line Crossing | Yes |
| People Counting | No |
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
| Features | AcuSense, Human/Vehicle Detection (16-ch) |
| Bandwidth | 320 Mbps In, 256 Mbps Out |
| Additional | POS Overlay Support |
| Vehicle | Up to 16-ch, for channel 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 only |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; |
| Manufacturer | Hikvision |
| Max Resolution | 8MP (4K) |
|---|---|
| Encoding Resolution | 8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Channels | 32-CH |
|---|---|
| IP Channels (Hybrid) | Up to 64 |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Decoding Capability | 32-ch 1080p @ 30fps |
| HDMI Output | 2× HDMI |
| BNC Output | Yes |
| Human & Vehicle Detection | Yes |
| Face Detection | No |
| Intrusion Detection | Yes |
| False Alarm Filtering | Yes |
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | Yes |
| Alarm Input | 16 |
| Alarm Output | 4 |
| Smart Events | Perimeter Protection, POS Integration |
| Video Inputs | 32-ch Analog + up to 64-ch IP |
| Main Output | Dual HDMI (4K + 1080p) |
| Alarm I/O | 16/4 |
| IP Video Input | 32-ch (up to 64-ch); Up to 12 MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 32-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDMI 1 Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI 2 Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Dual-stream | Support |
| HDD Bays | 4 Bays |
|---|---|
| Max Total Storage | 48TB |
| RAID Support | Yes |
| Storage | 4 SATA + eSATA (up to 4 x 12TB) |
| SATA | 4 SATA interfaces |
| Capacity | Up to 12 TB capacity for each disk |
| eSATA Port | Yes |
|---|---|
| RS-485 | Yes |
| Network | Dual Gigabit Ethernet |
| Remote Connection | 128 |
| Serial Interface | RS-232, RS-485 (full-duplex), Keyboard |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
|---|---|
| Max Power Consumption | ≤ 55 W |
| Perimeter Protection | Yes |
|---|---|
| Dimension (W × D × H) | 440 × 399 × 72 mm (17.3 × 15.7 × 2.8 inch) |
Features
The Hikvision iDS-7332HUHI-M4/S is a professional-grade 32-channel AcuSense hybrid DVR designed for enterprise and large-scale CCTV surveillance systems requiring intelligent detection, high-resolution recording, and advanced storage reliability. It supports HDTVI, AHD, CVI, CVBS, and IP camera inputs, allowing seamless integration with both legacy analog cameras and modern high-resolution IP cameras up to 12MP.
The recorder integrates AcuSense deep learning technology with Motion Detection 2.0, enabling accurate human and vehicle classification across all analog channels. Perimeter protection features such as line crossing and intrusion detection are supported on selected channels, improving event accuracy and reducing false alarms caused by environmental motion.
The DVR supports recording resolutions up to 8MP at 8 frames per second and uses H.265 Pro+ compression technology to significantly reduce storage requirements while maintaining high image quality. It includes dual HDMI outputs, with one supporting 4K resolution and independent display capability, allowing flexible monitoring configurations.
Storage capacity is highly scalable with four SATA interfaces supporting up to 12TB per drive and additional expansion via eSATA. RAID support ensures data protection and redundancy, making it suitable for mission-critical surveillance environments. Dual Gigabit Ethernet ports provide high network throughput and redundancy for reliable remote monitoring and system management.
This DVR is designed for commercial, industrial, and enterprise surveillance installations requiring intelligent analytics, high channel density, and secure storage infrastructure.
From this part’s own catalogue data.
| Works with | Wired (coax) cameras |
|---|---|
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Change of mind | 14 days |
Buy: basket, then card payment via the secure checkout. Bulk or larger quantities: Sales.
Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR: not yet reviewed. Reviews come from customers who bought this item, invited once the order is dispatched; each rating is a verified purchase.
