Hikvision · 32CH

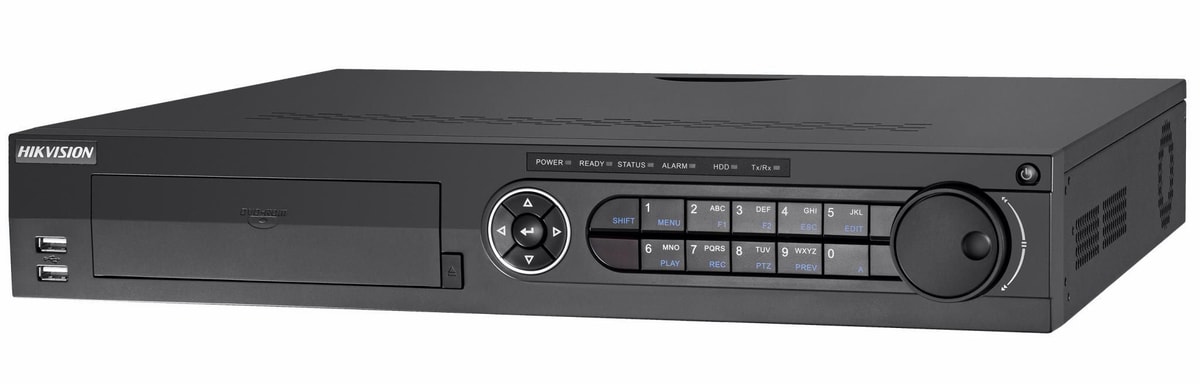

Hikvision 32-ch 5mp 1.5U H.265 DVR
- Part no.
- DS-7332HQHI-K4
- EAN / barcode
- 6954273652791
Price
£358.63Available
Hikvision · 32CH
Price
£358.63| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Form Factor | 2U Rack |
|---|---|
| Max Resolution | 5MP |
| Channels | 32-CH |
| HDD Bays | 4 Bays |
| Max Total Storage | 40 TB |
| Power Supply | 100-240V AC |
| Max Power Consumption | ≤ 45 W |
| Model | DS-7332HQHI-K4 |
|---|---|
| Series | K-Series |
| Form Factor | 2U Rack |
| HDMI/VGA Independent | Independent |
| AcuSense | No |
| DeepinMind / AI | No |
| Face Recognition | No |
| Line Crossing | Yes |
| People Counting | No |
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
| Features | POS Integration & Overlay |
| Manufacturer | Hikvision |
| Max Resolution | 5MP |
|---|---|
| Max Analog Resolution | 5MP |
| Recording Resolution | 4MP Lite, 3MP, 1080p Lite, 720p, WD1, VGA, CIF |
| Channels | 32-CH |
|---|---|
| IP Channels (Hybrid) | Up to 48 |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Frame Rate | 15 fps @ 4MP Lite / 15 fps @ 3MP / 30 fps @ 1080p Lite |
| Decoding Capability | 16 Channels |
| HDMI Output | 2× HDMI |
| BNC Output | Yes |
| Human & Vehicle Detection | No |
| Face Detection | No |
| Intrusion Detection | Yes |
| False Alarm Filtering | No |
| Audio Input | 4 RCA |
| Audio Output | 1 RCA |
| Two-Way Audio | Yes |
| Alarm Input | 16 |
| Alarm Output | 4 |
| Video Inputs | 32-ch Analog + up to 48-ch IP |
| Main Output | Dual HDMI (4K + 1080p) |
| First 4 Channels | Up to 3MP |
| Other Channels Max | 1080p @ 15fps |
| Alarm I/O | 16/4 |
| HDD Bays | 4 Bays |
|---|---|
| Max HDD per Bay | 10TB |
| Max Total Storage | 40 TB |
| Storage | 4 SATA + eSATA (up to 4 x 10TB) |
| eSATA Port | Yes |
|---|---|
| USB Ports | 3 (2×USB 2.0, 1×USB 3.0) |
| RS-485 | Yes |
| Network | Gigabit Ethernet |
| Power Supply | 100-240V AC |
|---|---|
| Max Power Consumption | ≤ 45 W |
| Perimeter Protection | Yes |
|---|
Features
The Hikvision DS-7332HQHI-K4 is a professional 32-channel Turbo HD DVR designed for large-scale CCTV surveillance installations requiring hybrid analog and IP camera support. It supports HDTVI, AHD, CVI, CVBS, and IP video inputs, allowing seamless integration with legacy coaxial systems while supporting expansion using IP cameras up to 6MP resolution.
The DVR supports H.265 Pro+ compression technology, significantly reducing storage requirements and improving bandwidth efficiency while maintaining recording performance. It supports up to 48 IP camera channels in hybrid mode, providing scalability for expanding surveillance systems.
The unit features dual HDMI outputs, including a secondary HDMI output capable of 4K resolution (3840 × 2160), along with VGA and CVBS outputs for flexible multi-monitor configurations. The recorder supports advanced video content analytics including line crossing detection and intrusion detection, improving monitoring capability in perimeter security applications.
Storage capacity is expanded through four SATA interfaces and one eSATA interface, supporting up to 10TB per drive for a maximum total storage capacity of 40TB internally. Alarm inputs and outputs, RS-485 interface for PTZ control, and Gigabit Ethernet connectivity provide integration with professional security infrastructure.
This DVR is suitable for enterprise, commercial, and industrial CCTV installations requiring high channel density, hybrid compatibility, and scalable storage capacity.
From this part’s own catalogue data.
| Works with | Wired (coax) cameras |
|---|---|
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Change of mind | 14 days |
Buy: basket, then card payment via the secure checkout. Bulk or larger quantities: Sales.
Hikvision 32-ch 5mp 1.5U H.265 DVR: not yet reviewed. Reviews come from customers who bought this item, invited once the order is dispatched; each rating is a verified purchase.
