| Works with | Wired (coax) cameras |
|---|---|
| Cameras | Up to 32 |
| Picture quality | Up to 4K (8MP) |
£905.59Available
Hikvision · 32CH

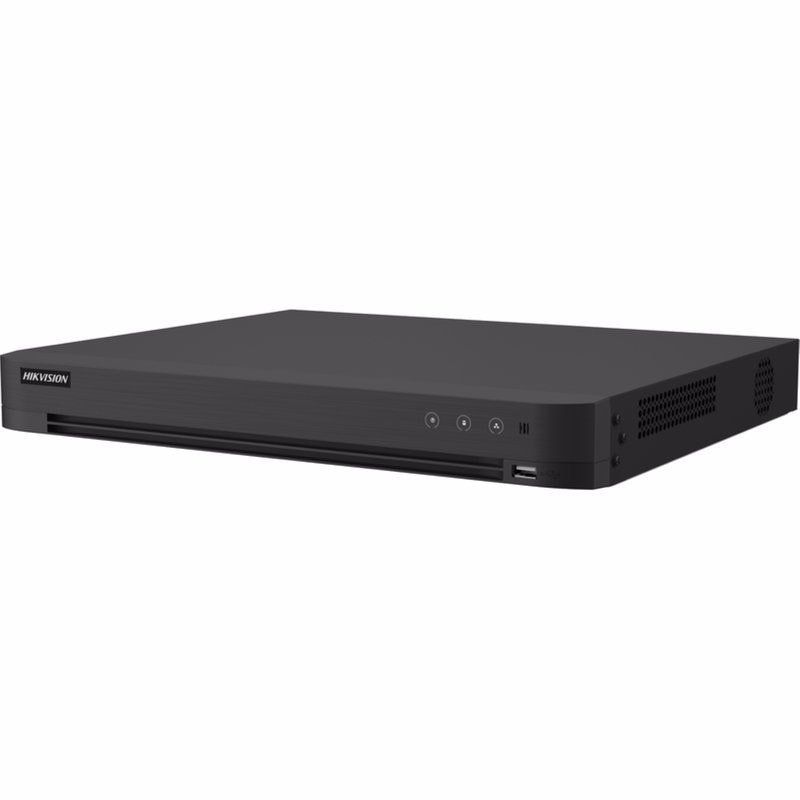

Hikvision 32-ch 5MP1U H.265 AcuSense DVR
- Part no.
- iDS-7232HQHI-M2/XT
- EAN / barcode
- 6942160459516
Price
£425.99Available
Hikvision · 32CH
Price
£425.99| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Form Factor | Desktop |
|---|---|
| Recording Resolution | 5MP |
| Channels | 32-CH |
| HDD Bays | 2 Bays |
| Max Total Storage | 24TB |
| Max Power Consumption | ≤ 60 W |
| Model | iDS-7232HQHI-M2/XT |
|---|---|
| Series | M-Series |
| Form Factor | Desktop |
| HDMI/VGA Independent | Sync |
| AcuSense | Yes |
| DeepinMind / AI | No |
| Face Recognition | Yes |
| Line Crossing | Yes |
| People Counting | No |
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
| Face Picture Library | Up to 16 face picture libraries,HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash. |
| Face Picture Comparison (Captured from Camera) | 4-ch face picture comparison alarm (HD analog camera) |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, |
| Manufacturer | Hikvision |
| Max Analog Resolution | 5MP |
|---|---|
| Recording Resolution | 5MP |
| Encoding Resolution | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Channels | 32-CH |
|---|---|
| IP Channels (Hybrid) | Up to 40 |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Decoding Capability | Up to 24-ch 1080p @ 30fps |
| HDMI Output | 1× HDMI |
| BNC Output | Yes |
| Human & Vehicle Detection | Yes |
| Face Detection | Yes |
| Intrusion Detection | Yes |
| False Alarm Filtering | Yes |
| Audio Input | 1 RCA + 32 via coaxial |
| Audio Output | 1 RCA |
| Two-Way Audio | Yes |
| Alarm Input | Optional |
| Alarm Output | Optional |
| Facial Detection and Capture | Face picture detection, face picture search； |
| IP Video Input | 8-ch (up to 40-ch), each up to 6 MP resolution, |
| Analog Video Input | 32-ch , BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| HDD Bays | 2 Bays |
|---|---|
| Max Total Storage | 24TB |
| Capacity | Up to 12 TB capacity for each disk |
| eSATA Port | No |
|---|---|
| RS-485 | Yes |
| Max Power Consumption | ≤ 60 W |
|---|
| Perimeter Protection | Yes |
|---|
Features
The Hikvision iDS-7232HQHI-M2/XT is a professional 32-channel Turbo HD AcuSense DVR designed for large-scale hybrid surveillance systems requiring advanced deep learning analytics and flexible camera integration. It supports HDTVI, AHD, CVI, CVBS, and IP cameras, allowing seamless integration with legacy analog infrastructure while enabling expansion using high-resolution IP cameras up to 8MP.
The DVR features AcuSense deep learning technology, providing accurate human and vehicle classification to significantly reduce false alarms caused by environmental movement such as shadows, animals, or weather conditions. Facial recognition functionality is supported on up to four channels, while perimeter protection features including line crossing detection and intrusion detection enhance overall security monitoring capabilities.
The recorder supports recording resolutions up to 5MP Lite and 4MP Lite using H.265 Pro+ compression technology, improving storage efficiency and reducing bandwidth consumption. HDMI output supports up to 4K resolution, while VGA output supports up to Full HD, allowing flexible local monitoring configurations.
Storage capacity is expandable via two SATA interfaces supporting up to 12TB per hard drive, providing a maximum storage capacity of 24TB. The system includes RS-485 interface for PTZ control, USB ports for backup and external devices, and Gigabit Ethernet connectivity for remote monitoring and system management via Hik-Connect and ONVIF-compatible platforms.
This DVR is suitable for commercial, industrial, and enterprise CCTV installations requiring intelligent detection, hybrid flexibility, and scalable recording performance.
From this part’s own catalogue data.
| Works with | Wired (coax) cameras |
|---|---|
| Camera Compatibility | Hikvision TurboHD (HD-TVI), AHD, CVI, CVBS analog cameras. IP cameras via hybrid channels (ONVIF supported). |
| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Change of mind | 14 days |
Buy: basket, then card payment via the secure checkout. Bulk or larger quantities: Sales.
Hikvision 32-ch 5MP1U H.265 AcuSense DVR: not yet reviewed. Reviews come from customers who bought this item, invited once the order is dispatched; each rating is a verified purchase.
