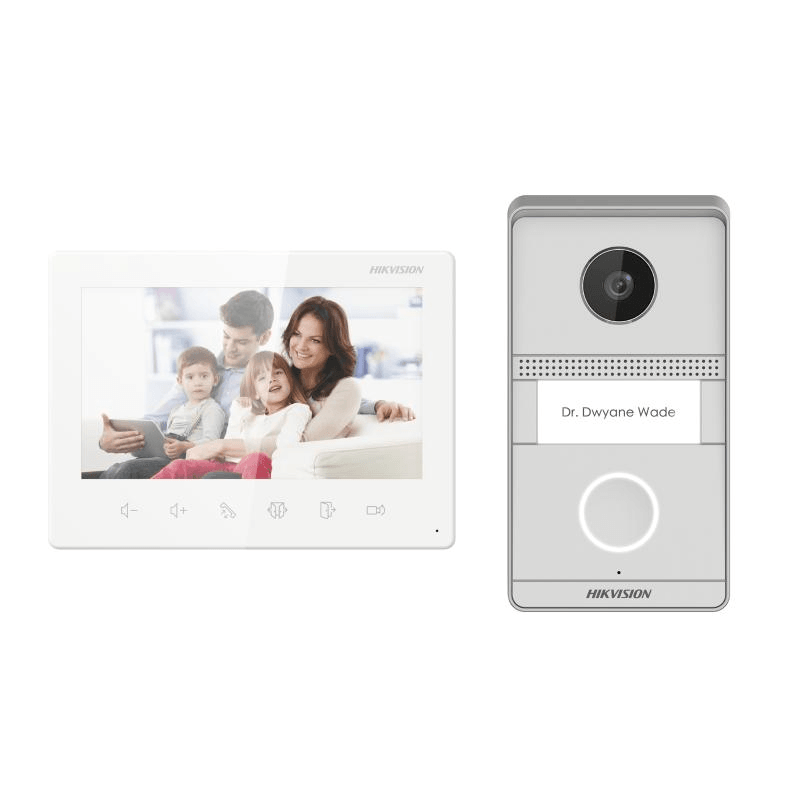

Hikvision DS-KIS101-P Surface 2-Wire Analog Video Intercom Kit
- Part no.
- DS-KIS101-P-Surface
- EAN / barcode
- 6941264079163
Price
£131.87Available
Intrusion
Price
£131.87| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Type | Colourful TFT screen |
|---|---|
| Max Resolution | 2MP |
| Power Supply | 48 VDC, 0.5 A |
| Max Power Consumption | ≤ 12 W |
| Dimensions | 150 mm × 82 mm × 23.5 mm (5.91" × 3.23" × 0.93") |
| Operating Temperature | -30 °C to +60 °C (-22 °F to 140 °F) |
| Volume Adjustment | Adjustable with screwdriver |
|---|---|
| Lock Control | 2, lock duration can be adjusted via DIP switch (Max. 7 s) |
| Installation | Surface mounting with protective shield |
| Application Environment | Outdoor |
| Operation Method | 6 touch buttons |
| Type | Colourful TFT screen |
| Volume | Adjustable via touch-button |
| Max Resolution | 2MP |
|---|
| Supplement Light | White light supplement |
|---|
| Audio Input | Built-in omnidirectional microphone |
|---|---|
| Audio Output | Built-in loudspeaker (More than 80 dB within 20 cm) |
| Power Supply for Lock | 1, Max. 12 V 1 A |
|---|---|
| Power Supply | 48 VDC, 0.5 A |
| Max Power Consumption | ≤ 12 W |
| Operating System | Embedded analog operation system |
|---|---|
| Protection Rating | IP65, IK7 |
| Operating Temperature | -30 °C to +60 °C (-22 °F to 140 °F) |
| Operating Humidity | 10% to 90% |
| Dimensions | 150 mm × 82 mm × 23.5 mm (5.91" × 3.23" × 0.93") |
| Size | 7-inch TFT non-touch screen |
| Dimensions (W × H × D) | 187 mm × 137 mm × 25.4 mm (7.36" × 5.39" × 1.00") |
Features
The Hikvision DS-KIS101-P/Surface is a 2-wire analog video intercom kit designed for residential and small building access control systems. The system provides video communication between visitors at the entrance and users inside the building, allowing convenient monitoring and door release control.
The kit uses a simple 2-wire plug and play installation method, allowing both power and communication to run through the same wiring. This makes it suitable for upgrades or installations where traditional network cabling is not available.
The outdoor door station features a surface mounting design and includes a one-touch nametag call button for easy visitor operation. The unit offers enhanced durability with IP65 weather protection and IK07 impact resistance, making it suitable for external entrance installations.
When a visitor presses the call button, the indoor station receives a video call allowing users to see and communicate with the visitor. The indoor monitor can also be used to unlock the connected door.
The system supports two lock relay outputs and can provide direct power to one electric lock up to 12V 1A, simplifying installation without requiring a separate lock power supply.
The kit includes a power adapter as part of the package and is designed for straightforward residential intercom installations.
