Hikvision DS-KIS702-P(B) 2-Wire IP Video Intercom Kit Villa
- Part no.
- DS-KIS702-P(B)
- EAN / barcode
- 6941264072119
Price
£491.51Available
Intrusion
Price
£491.51| UK delivery | £5.99 per order |
|---|---|
| Free delivery | Orders from £100 |
| Dispatch | Same day, orders by 4pm Mon–Fri |
| Max Resolution | 1024 × 600 |
|---|---|
| IP Rating | IP 65 |
| Network Interface | Two-wire interface |
| Power Supply | Two-wire |
| Max Power Consumption | ≤ 4W |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operation Mode | One touch key |
|---|---|
| Flash-Avoid Frequency | 50 Hz, 60 Hz |
| Lock Control | 2 (2 relay, max to 30 VDC, 2 A) |
| Installation | Wall mounting |
| IP Rating | IP 65 |
| Memory | 128 MB |
| Flash | 32 MB |
| Display Screen | 7-inch TFT LCD |
| Operation Method | Capacitive touch |
| Volume | Local or software control |
| TF Card | Support, Max. 128 GB |
| Digital Noise Reduction | Support |
|---|---|
| Field of View | Horizontal 146°, vertical 82° |
| Max Resolution | 1024 × 600 |
| Backlight Compensation | Support |
|---|
| Video Compression | H.264 |
|---|---|
| Motion Detection | Support |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Loudspeaker, 20 cm sound effect > 80 db |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Compression | G.711 U |
| Audio Compression Bitrate | 64 Kbps |
| Audio Intercom | Full-duplex two-way audio intercom |
| Alarm Input | 4 (2 exit butttons and 2 door contacts by default) |
| Relay Output | 2 (30 V Max.) |
| Network Protocol | TCP/IP, RTSP, IPV6, ONVIF |
|---|---|
| Wired Network | Two-wire network |
| Wireless Network | Wi-Fi 802.11b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| Network Interface | Two-wire interface |
| Two-wire Interface | 6 (2 for cascading and 4 for devices) |
| Power Supply | Two-wire |
|---|---|
| Power Input | Powered by KAD704Y or KAD706Y series distributor |
| Max Power Consumption | ≤ 4W |
| Operating System | Embedded Linux operation system |
|---|---|
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 10% to 90% |
Features
The Hikvision DS-KIS702-P(B) is a 2-wire digital IP video intercom bundle designed for residential access control applications such as villas, houses and small buildings. The system allows occupants to communicate with visitors, monitor entrances and remotely unlock doors through the indoor station.

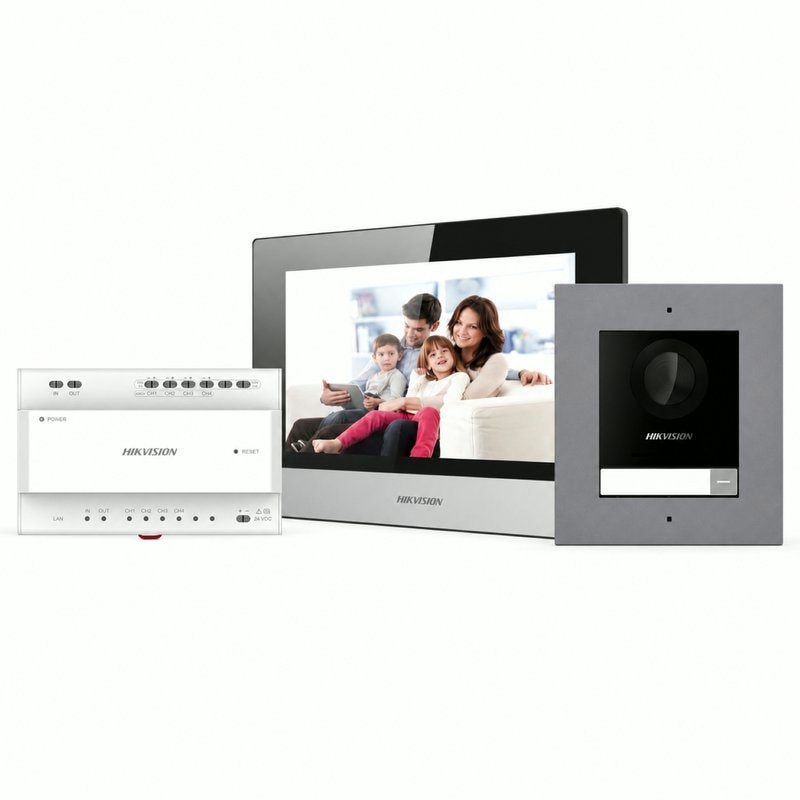

The kit includes a DS-KD8003Y-IME2 surface mount door station, a DS-KH6320Y-WTE2 indoor monitor, and the DS-KAD704Y two-wire distributor module. The door station features a built-in camera and a single call button that allows visitors to initiate calls to the indoor monitor.
The indoor station provides a touch screen interface that allows users to answer calls, view visitors and release connected door locks. The system also supports message and snapshot storage using the included 16GB TF card, allowing users to review missed visitor calls.
The two-wire design simplifies installation by allowing both power and communication signals to run through the same cable, making the system suitable for upgrades of existing intercom wiring.
The kit also includes a power supply unit and power adapter, providing all essential components required for basic residential intercom installation.
