Features
- 24 × 10/100 Mbps PoE Ethernet ports
- 1 × Gigabit RJ45 uplink port
- 1 × Gigabit SFP fiber uplink port
- Supports IEEE 802.3af and IEEE 802.3at PoE standards
- Maximum 30 W output per PoE port
- Total PoE power budget approximately 230 W
- Long-range PoE transmission up to 300 m (Extend mode)
- Metal enclosure suitable for rack, desktop or wall installation

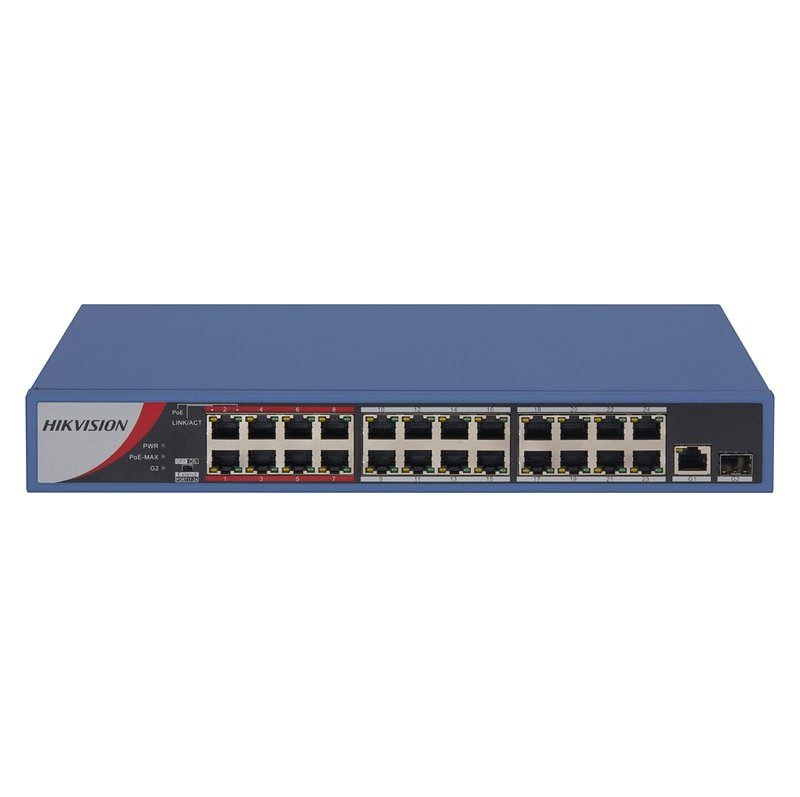

The Hikvision DS-3E0326P-E/M(B) is a Layer-2 unmanaged PoE switch designed for CCTV and network infrastructure installations. It provides 24 Fast Ethernet PoE ports, allowing direct connection and power supply for IP cameras, wireless access points and other PoE-enabled devices. In addition, the switch includes one Gigabit RJ45 uplink port and one Gigabit SFP fiber port for high-speed network uplink connections.
The device supports IEEE 802.3af and IEEE 802.3at PoE standards, delivering up to 30 W per PoE port with a total PoE power budget of around 230 W, enabling multiple surveillance cameras to be powered from a single switch.
For large surveillance deployments, the switch includes Extend mode, enabling PoE transmission distances up to 300 metres, which is useful for installations where cameras are located far from the equipment rack.
The switch uses store-and-forward switching architecture with a switching capacity of approximately 8.8 Gbps and a packet forwarding rate of about 6.547 Mpps, ensuring stable performance for video surveillance networks.
Designed with a durable metal enclosure, the DS-3E0326P-E/M(B) supports installation in network cabinets, rack environments and CCTV control rooms. Its plug-and-play unmanaged design allows easy deployment without configuration, making it suitable for professional security installations and medium-to-large IP camera systems.
