Features
- 4 × Gigabit PoE Ethernet ports
- 1 × Gigabit RJ45 uplink port
- Supports IEEE 802.3af and IEEE 802.3at PoE standards
- Maximum 30 W output per PoE port
- Total PoE power budget up to 60 W
- 6 kV surge protection for PoE ports
- Plug-and-play unmanaged operation
- Metal fan-free design for desktop or wall mounting

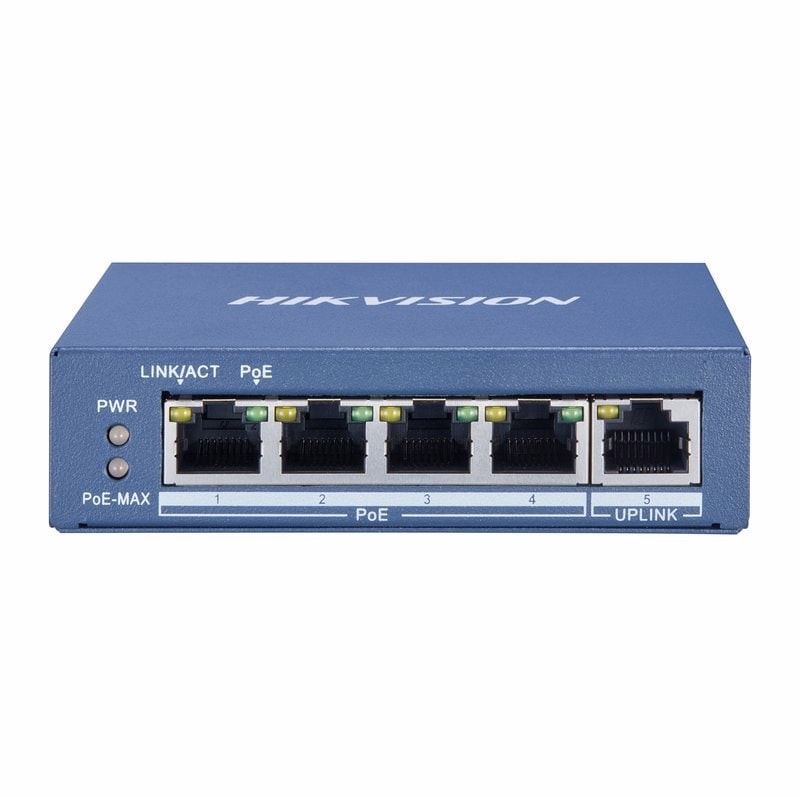

The Hikvision DS-3E0505P-E is a Layer-2 unmanaged Gigabit PoE switch designed for CCTV and network infrastructure installations. The device provides four Gigabit PoE ports and one Gigabit uplink RJ45 port, allowing IP cameras and other PoE-powered devices to be connected directly while maintaining a high-speed uplink to the main network.
The switch supports IEEE 802.3af and IEEE 802.3at PoE standards, delivering up to 30 W per PoE port with a total PoE power budget of up to 60 W, making it suitable for powering multiple surveillance cameras, wireless access points or other PoE devices.
Designed specifically for video surveillance networks, the switch uses store-and-forward switching architecture and provides a switching capacity of approximately 10 Gbps with a packet forwarding rate of 7.44 Mpps, ensuring stable data transmission for high-bandwidth video streams.
The device includes 6 kV surge protection on PoE ports, helping protect connected cameras and network equipment from electrical surges. The fan-free metal enclosure ensures silent operation and improved durability in network cabinets, CCTV control rooms and small surveillance installations.
With its plug-and-play unmanaged design, the DS-3E0505P-E requires no configuration and can be deployed quickly in residential, commercial or industrial IP camera systems.
